Page 314 - Railways Applications Terminal blocks

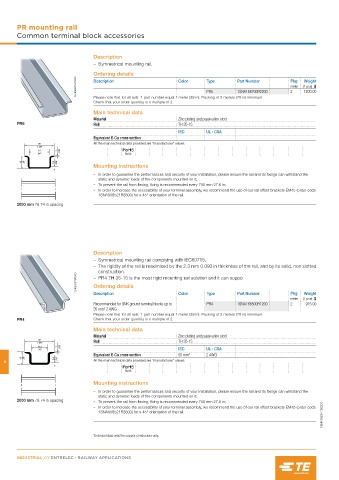

PR mounting rail
Common terminal block accessories

Description
– Symmetrical mounting rail.
Ordering details Pkg
1SNK500075F0000 Description Color Type Part Number meter (1 pce) g
Weight
PR5
1SNA168700R2200
1200.00
2
Please note that for all rails: 1 part number equal 1 meter (39 in). Packing of 2 meters (78 in) minimum.
Check that your order quantity is a multiple of 2.
Main technical data
Material Zinc plating and passivation steel
PR5 Rail TH 35-15
IEC UL - CSA
Equivalent E-Cu cross section
All the main technical data provided are "manufacturer" values.

RoHS
Mounting instructions
– In order to guarantee the performances and security of your installation, please ensure the rail and its fixings can withstand the
static and dynamic loads of the components mounted on it;
– To prevent the rail from flexing, fixing is recommended every 700 mm 27.6 in;
– In order to increase the accessibility of your terminal assembly, we recommend the use of our rail offset brackets EM45 (order code
1SNA008521R2600) for a 45° orientation of the rail.
2000 mm 78.74 in spacing

Description
– Symmetrical mounting rail complying with IEC60715,
– The rigidity of the rail is maximised by the 2.3 mm 0.090 in thickness of the rail, and by its solid, non slotted
construction,
1SNK500076F0000 Ordering details
– PR4 TH 35-15 is the most rigid mounting rail solution and it can suppo

Description Color Type Part Number Pkg Weight
meter (1 pce) g
Recommended for SNK ground terminal blocks up to PR4 1SNA168500R1200 2 915.00
35 mm² 2 AWG
Please note that for all rails: 1 part number equal 1 meter (39 in). Packing of 2 meters (78 in) minimum.
PR4 Check that your order quantity is a multiple of 2.
Main technical data
Material Zinc plating and passivation steel
Rail TH 35-15
IEC UL - CSA
Equivalent E-Cu cross section 50 mm² 2 AWG
9 All the main technical data provided are "manufacturer" values.
RoHS

Mounting instructions
– In order to guarantee the performances and security of your installation, please ensure the rail and its fixings can withstand the
static and dynamic loads of the components mounted on it;
2000 mm 78.74 in spacing
– To prevent the rail from flexing, fixing is recommended every 700 mm 27.6 in;
1SNK160041S0201
– In order to increase the accessibility of your terminal assembly, we recommend the use of our rail offset brackets EM45 (order code
1SNA008521R2600) for a 45° orientation of the rail.

Technical data valid for copper conductors only.
