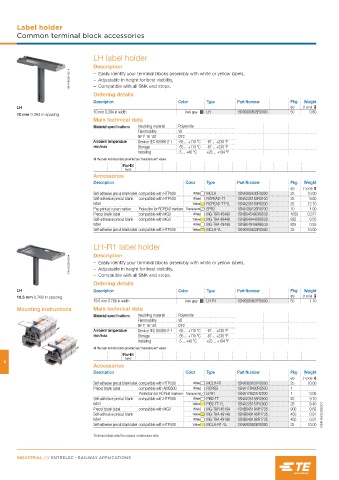

Page 318 - Railways Applications Terminal blocks

Label holder
Common terminal block accessories

LH label holder
Description
1SNK160334V0014 – Easily identify your terminal blocks assembly with white or yellow labels,
– Adjustable in height for best visibility,
– Compatible with all SNK end stops.
Ordering details
Description Color Type Part Number Pkg Weight
LH qty (1 pce) g
10 mm 0.394 in width Dark grey LH 1SNK900605R0000 50 0.60
10 mm 0.394 in spacing
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values
RoHS
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Self-adhesive precut blank label compatible with HTP500 White MCLH 1SNK900630R0000 25 10.00
Self-adhesive precut blank compatible with HTP500 White RCPEAD-TT 1SNA235158R0100 25 9.80
label Yellow RCPEAD-TT-YL 1SNA235159R0200 25 12.10
Pre-printed cover marker Protection for RCPEAD markers Transparent EPR2 1SNA399726R0700 10 4.00
Precut blank label compatible with MG3 White MG-TAR 45490 1SNB045490R8530 1650 0.371
Self-adhesive precut blank compatible with MG3 Yellow MG-TAA 49448 1SNB049448R8530 825 0.55
label White MG-TAA 49498 1SNB049498R8530 825 0.55
Self-adhesive precut blank label compatible with HTP500 Yellow MCLH-YL 1SNK900633R0000 25 10.00

LH-R1 label holder
Description
1SNK160335V0014 – Easily identify your terminal blocks assembly with white or yellow labels,
– Adjustable in height for best visibility,
– Compatible with all SNK end stops.
Ordering details
LH Description Color Type Part Number Pkg Weight
19.5 mm 0.768 in spacing qty (1 pce) g
19.5 mm 0.768 in width Dark grey LH-R1 1SNK900607R0000 50 1.10
Mounting instructions Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values
RoHS
9
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Self-adhesive precut blank label compatible with HTP500 White MCLH-R1 1SNK900631R0000 25 10.00
Precut blank label compatible with AMS600 White RCPEB 1SNA178430R0500 1
Protection for RCPEB markers Transparent EPR1 1SNA178431R2200 1 0.05
Self-adhesive precut blank compatible with HTP500 White PIB2-TT 1SNA235155R2600 25 9.70
label Yellow PIB2-TT-YL 1SNA235157R2000 25 9.40
Precut blank label compatible with MG3 White MG-TAR 45194 1SNB045194R1735 900 0.62
Self-adhesive precut blank Yellow MG-TAA 49148 1SNB049148R1735 450 0.91 1SNK160023S0201
label White MG-TAA 49198 1SNB049198R1735 450 0.91
Self-adhesive precut blank label compatible with HTP500 Yellow MCLH-R1-YL 1SNK900634R0000 25 10.00

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
