Screwless end stops
Common terminal block accessories

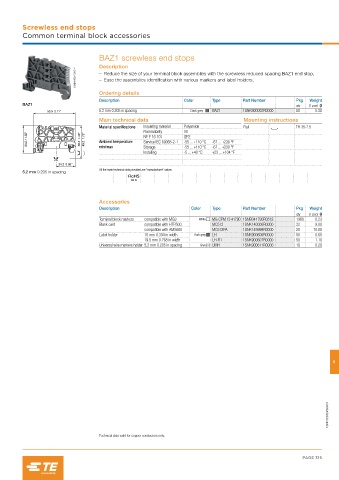

BAZ1 screwless end stops
Description
1SNK160247V0014 – Reduce the size of your terminal block assemblies with the screwless reduced spacing BAZ1 end stop,
– Ease the assemblies identification with various markers and label holders.

Ordering details
Description Color Type Part Number Pkg Weight
BAZ1 qty (1 pce) g
53.5 2.11" 5.2 mm 0.205 in spacing Dark grey BAZ1 1SNK900002R0000 50 5.30
Main technical data Mounting instructions
Material specifications Insulating material Polyamide Rail TH 35-7.5
Flammability V0
34.2 / 1.35" 35.7 1.43" 43.2 1.72" Ambient temperature NF F 16 101 I2F2 -67 ... +230 °F
Service IEC 60068-2-1
-55 ... +110 °C
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F

24.2 0.95"
All the main technical data provided are "manufacturer" values
5.2 mm 0.205 in spacing
RoHS

Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Terminal block markers compatible with MG3 White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
Blank card compatible with HTP500 MC512 1SNK140000R0000 22 9.00
compatible with AMS600 MC512PA 1SNK149999R0000 20 10.00
Label holder 10 mm 0.394 in width Dark grey LH 1SNK900605R0000 50 0.60
19.5 mm 0.768 in width LH-R1 1SNK900607R0000 50 1.10
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

9

1SNK160002S0201

Technical data valid for copper conductors only.
