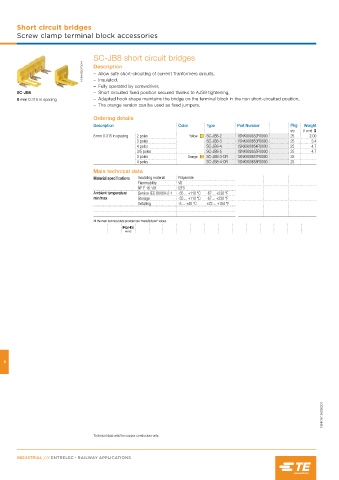

Short circuit bridges
Screw clamp terminal block accessories

SC-JB8 short circuit bridges
1SNK160221F0014 Description
– Allow safe short-circuiting of current Tranformers circuits,
– Insulated,
– Fully operated by screwdriver,
SC-JB8 – Short circuited fixed position secured thanks to AJS9 tightening,
8 mm 0.315 in spacing – Adapted hook shape maintains the bridge on the terminal block in the non short-circuited position,
– The orange version can be used as fixed jumpers.

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
8 mm 0.315 in spacing 2 poles Yellow SC-JB8-2 1SNK900652R0000 25 2.00
3 poles SC-JB8-3 1SNK900653R0000 25 3.4
4 poles SC-JB8-4 1SNK900654R0000 25 4.7
3/5 poles SC-JB8-5 1SNK900655R0000 25 4.7
3 poles Orange SC-JB8-3-OR 1SNK900657R0000 25
4 poles SC-JB8-4-OR 1SNK900658R0000 25
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F3
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F

All the main technical data provided are "manufacturer" values
RoHS

9

1SNK161063S0201

Technical data valid for copper conductors only.
