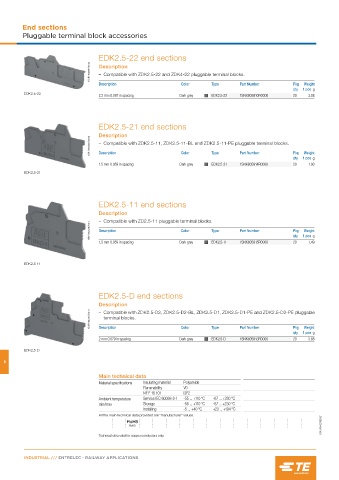

Page 350 - Railways Applications Terminal blocks

End sections
Pluggable terminal block accessories

EDK2.5-22 end sections
1SNK160301V0014 Description
– Compatible with ZDK2.5-22 and ZDK4-22 pluggable terminal blocks.
Description Color Type Part Number Pkg Weight
qty 1 pce g
EDK2.5-22
2.2 mm 0.087 in spacing Dark grey EDK2.5-22 1SNK805910R0000 20 3.08

EDK2.5-21 end sections
Description
1SNK164030V0014 – Compatible with ZDK2.5-11, ZDK2.5-11-BL and ZDK2.5-11-PE pluggable terminal blocks.

Part Number
Description
Type
Color
Weight
Pkg
qty 1 pce g
1.5 mm 0.059 in spacing Dark grey EDK2.5-21 1SNK805914R0000 20 1.90
EDK2.5-21

EDK2.5-11 end sections
Description
– Compatible with ZD2.5-11 pluggable terminal blocks.
1SNK164029V0014 Description Color Type Part Number Pkg 1 pce g
Weight
qty
1.5 mm 0.059 in spacing Dark grey EDK2.5-11 1SNK805915R0000 20 1.49

EDK2.5-11

EDK2.5-D end sections
Description
1SNK164031V0014 – Compatible with ZDK2.5-D2, ZDK2.5-D2-BL, ZDK2.5-D1, ZDK2.5-D1-PE and ZDK2.5-D2-PE pluggable
terminal blocks.

Part Number
Weight
Type
Color
Pkg
Description
qty 1 pce g
2 mm 0.079 in spacing Dark grey EDK2.5-D 1SNK805913R0000 20 3.88
EDK2.5-D
9
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °C
min/max Storage -55 ... +110 °C -67 ... +230 °C
Installing -5 ... +40 °C +23 ... +104 °C
All the main technical data provided are "manufacturer" values.
1SNK164033S0201
RoHS

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
