End sections
Pluggable terminal block accessories

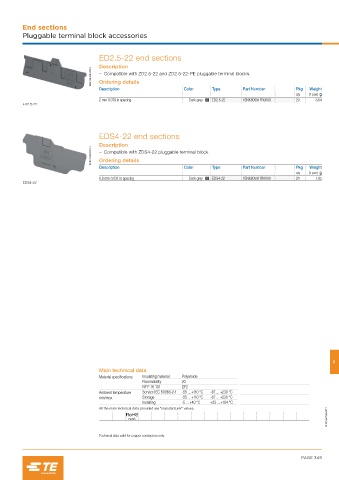

ED2.5-22 end sections
Description
1SNK164028V0014 Ordering details
– Compatible with ZD2.5-22 and ZD2.5-22-PE pluggable terminal blocks.

Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey ED2.5-22 1SNK805917R0000 20 3.64
ED2.5-22

EDS4-22 end sections
Description
1SNK160302V0014 Ordering details
– Compatible with ZDS4-22 pluggable terminal block.

Description Color Type Part Number Pkg Weight
qty (1 pce) g
0.8 mm 0.031 in spacing Dark grey EDS4-22 1SNK805911R0000 20 1.85
EDS4-22

9
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °C
min/max Storage -55 ... +110 °C -67 ... +230 °C
Installing -5 ... +40 °C +23 ... +104 °C
All the main technical data provided are "manufacturer" values.
1SNK164034S0201
RoHS

Technical data valid for copper conductors only.
