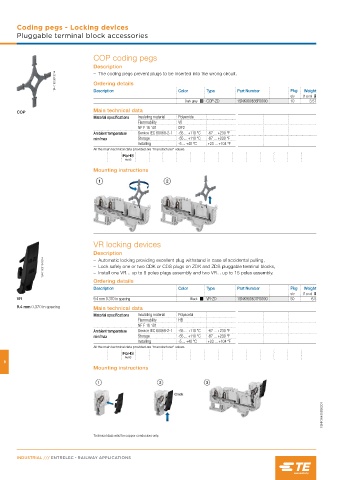

Page 352 - Railways Applications Terminal blocks

Coding pegs - Locking devices
Pluggable terminal block accessories

COP coding pegs
Description
1SNK160298V0014 Ordering details
– The coding pegs prevent plugs to be inserted into the wrong circuit.

Description
Color
Weight
Pkg
Type
Part Number
qty (1 pce) g
Dark grey COP-ZD 1SNK900636R0000 10 3.57
Main technical data
COP
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values.
RoHS
Mounting instructions

VR locking devices
Description
1SNK160315V0014 – Lock safely one or two CDK or CDS plugs on ZDK and ZDS pluggable terminal blocks,
– Automatic locking providing excellent plug withstand in case of accidental pulling,
– Install one VR... up to 8 poles plugs assembly and two VR... up to 15 poles assembly.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
VR 9.4 mm 0.370 in spacing Black VR-ZD 1SNK900637R0000 50 6.5
9.4 mm 0.370 in spacing Main technical data
Material specifications Insulating material Polyacetal
Flammability HB
NF F 16 101
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values.
RoHS
9
Mounting instructions

1SNK164009S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
