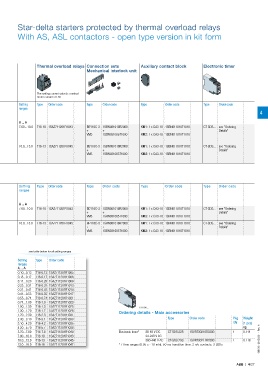

Page 147 - Motor_protection_and_control_Manual_motor_starters_ contactors

Star-delta starters protected by thermal overload relays

With AS, ASL contactors - open type version in kit form

Contactors - AC operated
Line contactor KM1 Delta contactor KM3 Star contactor KM2 Thermal overload relays Connection sets Auxiliary contact block Electronic timer
Mechanical interlock unit
L Y

The setting current value is: nominal
motor current x 0.58
IEC Rated control Type Order code Type Order code Type Order code Setting Type Order code Type Order code Type Order code Type Order code
AC-3, 400 V circuit voltage ranges
Rated operational Uc 4
power current (1)
kW A V 50 Hz V 60 Hz A ... A
7.5 15.5 24 24 AS09-30-10-20 1SBL101001R2010 AS09-30-01-20 1SBL101001R2001 AS09-30-01-20 1SBL101001R2001 7.60…10.0 T16-10 1SAZ711201R1043 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010
230 230 AS09-30-10-26 1SBL101001R2610 AS09-30-01-26 1SBL101001R2601 AS09-30-01-26 1SBL101001R2601
11 22 24 24 AS12-30-10-20 1SBL111001R2010 AS12-30-01-20 1SBL111001R2001 AS09-30-01-20 1SBL101001R2001 10.0...13.0 T16-13 1SAZ711201R1045 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010
230 230 AS12-30-10-26 1SBL111001R2610 AS12-30-01-26 1SBL111001R2601 AS09-30-01-26 1SBL101001R2601

Contactors - DC operated
IEC Rated control Type Order code Type Order code Type Order code Setting Type Order code Type Order code Type Order code Type Order code
AC-3, 400 V circuit voltage ranges
Rated operational Uc
power current (1)
kW A DC A ... A
7.5 15.5 24 ASL09-30-10-81 1SBL103001R8110 ASL09-30-01-81 1SBL103001R8101 ASL09-30-01-81 1SBL103001R8101 7.60...10.0 T16-10 1SAZ711201R1043 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010
11 22 24 ASL12-30-10-81 1SBL113001R8110 ASL12-30-01-81 1SBL113001R8101 ASL09-30-01-81 1SBL103001R8101 10.0...13.0 T16-13 1SAZ711201R1045 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010

Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.
see table below for all setting ranges

Setting Type Order code
ranges
A ... A
0.10...0.13 T16-0.13 1SAZ711201R1005
0.13...0.17 T16-0.17 1SAZ711201R1008
0.17...0.23 T16-0.23 1SAZ711201R1009
0.23...0.31 T16-0.31 1SAZ711201R1013
0.31...0.41 T16-0.41 1SAZ711201R1014
0.41...0.55 T16-0.55 1SAZ711201R1017
0.55...0.74 T16-0.74 1SAZ711201R1021
0.74...1.00 T16-1.0 1SAZ711201R1023
1.00...1.30 T16-1.3 1SAZ711201R1025 CT-SDS...
1.30...1.70 T16-1.7 1SAZ711201R1028 Ordering details - Main accessories
1.70...2.30 T16-2.3 1SAZ711201R1031
2.30...3.10 T16-3.1 1SAZ711201R1033 Type Order code Pkg Weight
3.10...4.20 T16-4.2 1SAZ711201R1035 qty (1 pce)
4.20...5.70 T16-5.7 1SAZ711201R1038 kg
5.70...7.60 T16-7.6 1SAZ711201R1040 Electronic timer* 28-48 V DC CT-SDS.22S 1SVR730210R3300 1 0.114
7.60...10.0 T16-10 1SAZ711201R1043 24-240 V AC
10.0...13.0 T16-13 1SAZ711201R1045 380-440 V AC CT-SDS.23S 1SVR730211R2300 1 0.118 1SBC101281S0201 - Rev. A
13.0...16.0 T16-16 1SAZ711201R1047 * 7 time ranges (0.05 s - 10 min), 50 ms transition time, 2 n/o contacts, 3 LEDs

ABB | 4/27
