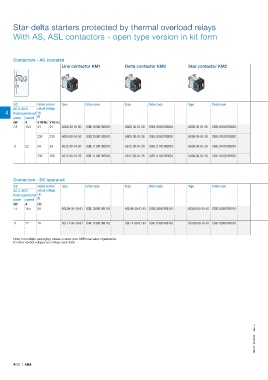

Star-delta starters protected by thermal overload relays

With AS, ASL contactors - open type version in kit form

Contactors - AC operated
Line contactor KM1 Delta contactor KM3 Star contactor KM2 Thermal overload relays Connection sets Auxiliary contact block Electronic timer
Mechanical interlock unit
L Y

The setting current value is: nominal
motor current x 0.58
IEC Rated control Type Order code Type Order code Type Order code Setting Type Order code Type Order code Type Order code Type Order code
AC-3, 400 V circuit voltage ranges
4 Rated operational Uc
power current (1)
kW A V 50 Hz V 60 Hz A ... A
7.5 15.5 24 24 AS09-30-10-20 1SBL101001R2010 AS09-30-01-20 1SBL101001R2001 AS09-30-01-20 1SBL101001R2001 7.60…10.0 T16-10 1SAZ711201R1043 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010
230 230 AS09-30-10-26 1SBL101001R2610 AS09-30-01-26 1SBL101001R2601 AS09-30-01-26 1SBL101001R2601
11 22 24 24 AS12-30-10-20 1SBL111001R2010 AS12-30-01-20 1SBL111001R2001 AS09-30-01-20 1SBL101001R2001 10.0...13.0 T16-13 1SAZ711201R1045 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010
230 230 AS12-30-10-26 1SBL111001R2610 AS12-30-01-26 1SBL111001R2601 AS09-30-01-26 1SBL101001R2601

Contactors - DC operated
IEC Rated control Type Order code Type Order code Type Order code Setting Type Order code Type Order code Type Order code Type Order code
AC-3, 400 V circuit voltage ranges
Rated operational Uc
power current (1)
kW A DC A ... A
7.5 15.5 24 ASL09-30-10-81 1SBL103001R8110 ASL09-30-01-81 1SBL103001R8101 ASL09-30-01-81 1SBL103001R8101 7.60...10.0 T16-10 1SAZ711201R1043 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010
11 22 24 ASL12-30-10-81 1SBL113001R8110 ASL12-30-01-81 1SBL113001R8101 ASL09-30-01-81 1SBL103001R8101 10.0...13.0 T16-13 1SAZ711201R1045 BEY16C-3 1SBN081018R2000 KM1: 1 x CA3-10 1SBN011010T1010 CT-SDS… see "Ordering
+ + Details"
VM3 1SBN031005T1000 KM2: 1 x CA3-10 1SBN011010T1010

Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

1SBC101281S0201 - Rev. A

4/26 | ABB
