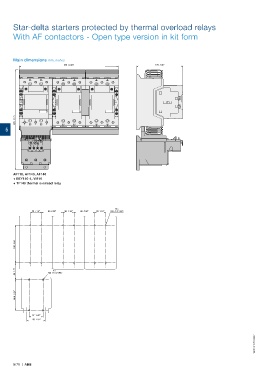

Star-delta starters protected by thermal overload relays
With AF contactors - Open type version in kit form
Main dimensions mm, inches
270 10.63" 126 4.96"
272 10.71"
5
AF116, AF140, AF146
+ BEY140-4, VM19
+ TF140 thermal overload relay
12 x
30 1.18" 60 2.36" 30 1.18" 60 2.36" 30 1.18" M4 8-32 UNC
100 3.94"
45 1.77" M5 10-24 UNC
4 x
82.3 3.24"
37 1.46"
50 1.97"
1SFC101170C0201
