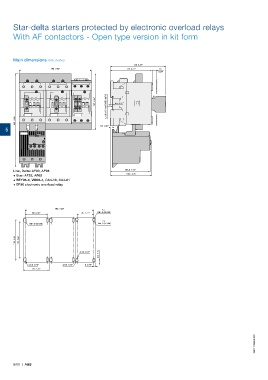

Star-delta starters protected by electronic overload relays

With AF contactors - Open type version in kit form

Main dimensions mm, inches
149 5.87"
195 7.68" 116 4.57" 10
0.39"

35 x 15 mm EN/IEC 60715
151 5.94" 5.5 0.22"

251 9.88"

5 5.4 0.21"

Line, Delta: AF80, AF96 106.8 4.20"
+ Star: AF52, AF65 110.6 4.35"
+ BEY96-4, VM96-4, CA4-10, CA4-01
+ EF96 electronic overload relay

185 7.28" 2 x
60 2.36" 45 1.77" M6 ¼-20 UNC
2 x
M6 ¼-20 UNC M4 8-32 UNC

110 4.33" 100 3.94"

4.8 0.19"
ø 4.2 0.17"

ø 6.4 0.25" ø 6.4 0.25" 5 0.20"
70 2.76"

1SBC101968S0201

5/80 | ABB
