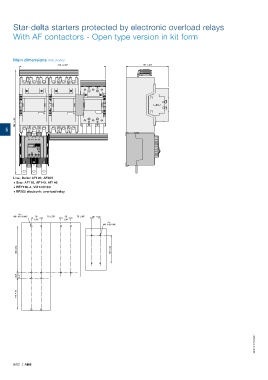

Star-delta starters protected by electronic overload relays
With AF contactors - Open type version in kit form
Main dimensions mm, inches
310 12.20" 152 5.98"
369 14.53"
5
Line, Delta: AF190, AF205
+ Star: AF116, AF140, AF146
+ BEY190-4, VM140/190
+ EF205 electronic overload relay
12 x
M5 10-24 UNC 35 70 2.76" 35 75 2.95" 30 1.18"
1.38" 1.38"
4 x
M4 8-32 UNC
165 6.50" 100 3.94"
20.5 0.81"
112 4.42"
