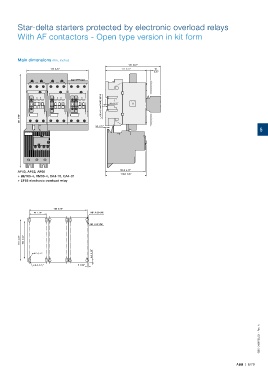

Star-delta starters protected by electronic overload relays

With AF contactors - Open type version in kit form

Main dimensions mm, inches
144 5.67"
173 6.81" 111 4.37" 10
0.39"

35 x 15 mm EN/IEC 60715 5.5 0.22"

251 9.88"

5.4 0.21"
5

AF40, AF52, AF65 106.8 4.20"
110.6 4.35"
+ BEY65-4, VM96-4, CA4-10, CA4-01
+ EF65 electronic overload relay

155 6.10"
45 1.78" M6 ¼-20 UNC

M4 8-32 UNC

110 4.33" 100 3.94"

4.6 0.18"
ø 4.2 0.17"

ø 6.4 0.25" 5 0.20"
