Star-delta starters protected by electronic overload relays
With AF contactors - Open type version in kit form

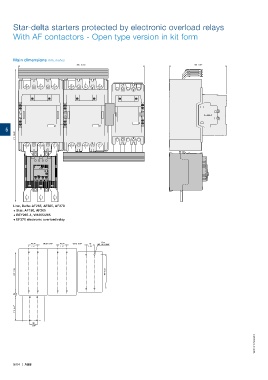

Main dimensions mm, inches
395 15.55" 180 7.09"
5
417 16.42"
Line, Delta: AF265, AF305, AF370
+ Star: AF190, AF205
+ BEY265-4, VM205/265
+ EF370 electronic overload relay
16 x
43.75 96.25 3.79" 43.75 93.12 3.67" 35 M5 10-24 UNC
1.72" 1.72" 1.38"
187 7.36" 165 6.50"
1.14"
29
112 4.41"
35
1.38"
1SFC101175C0201
