Star-delta starters protected by electronic overload relays
With AF contactors - Open type version in kit form

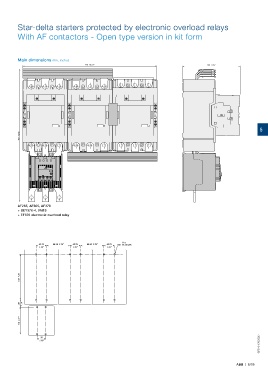

Main dimensions mm, inches
420 16.54" 180 7.09"
5
417 16.42"
AF265, AF305, AF370
+ BEY370-4, VM19
+ EF370 electronic overload relay
16 x
43.75 96.25 3.79" 43.75 96.25 3.79" 43.75 M5 10-24 UNC
1.72" 1.72" 1.72"
187 7.36"
29 1.14"
112 4.41"
1SFC101176C0201
35
1.38"
