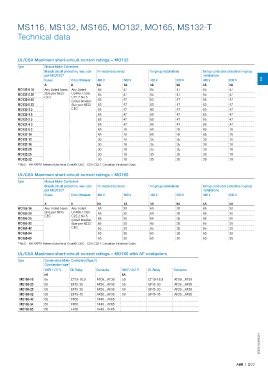

Page 31 - Motor_protection_and_control_Manual_motor_starters_ contactors

MS116, MS132, MS165, MO132, MO165, MS132-T

Technical data

UL/CSA Maximum short-circuit current ratings – MO132
Type Manual Motor Controllers
Branch circuit protection, max. size for motor disconnect for group installations for tap conductor protection in group
per NEC/CEC 1) installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480 V 600 V 2
A A kA kA kA kA kA kA
MO132-0.16 Any Listed fuses. Any Listed 65 47 65 47 65 47
MO132-0.25 Size per NEC/ UL489 / CSA 65 47 65 47 65 47
MO132-0.40 CEC C22.2 No.5 65 47 65 47 65 47
circuit breaker.
MO132-0.63 Size per NEC/ 65 47 65 47 65 47
MO132-1.0 CEC 65 47 65 47 65 47
MO132-1.6 65 47 65 47 65 47
MO132-2.5 65 47 65 47 65 47
MO132-4.0 65 47 65 47 65 47
MO132-6.3 65 18 65 35 65 18
MO132-10 65 18 65 35 65 18
MO132-12 30 18 35 35 30 18
MO132-16 30 18 35 35 30 18
MO132-20 30 18 35 35 30 18
MO132-25 30 18 35 35 30 18
MO132-32 30 18 35 35 30 18
NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.
1)
UL/CSA Maximum short-circuit current ratings – MO165
Type Manual Motor Controllers
Branch circuit protection, max. size for motor disconnect for group installations for tap conductor protection in group
per NEC/CEC 1) installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480 V 600 V

A A kA kA kA kA kA kA
MO165-16 Any Listed fuses. Any Listed 65 30 65 30 65 30
MO165-20 Size per NEC/ UL489 / CSA 65 30 65 30 65 30
MO165-25 CEC C22.2 No.5 65 30 65 30 65 30
circuit breaker.
MO165-32 Size per NEC/ 65 30 65 30 65 30
MO165-42 CEC 65 30 65 30 65 30
MO165-54 65 30 65 30 65 30
MO165-65 65 30 65 30 65 30
1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MO165 with AF contactors
Type Combination Motor Controllers (Type F)
Coordination type 1
480Y / 277 V OL Relay Contactor 600Y / 347 V OL Relay Contactor
kA kA
MO165-16 65 EF19-18.9 AF09…AF38 50 EF19-18.9 AF09…AF38
MO165-20 65 EF45-30 AF26…AF38 50 EF45-30 AF26…AF38
MO165-25 65 EF45-30 AF26…AF38 50 EF45-30 AF26…AF38
MO165-32 65 EF45-45 AF26…AF38 50 EF45-45 AF26…AF38
MO165-42 65 EF65 AF40…AF65
MO165-54 65 EF65 AF40…AF65
MO165-65 65 EF65 AF40…AF65

2CDC131062C0201

ABB | 2/23
