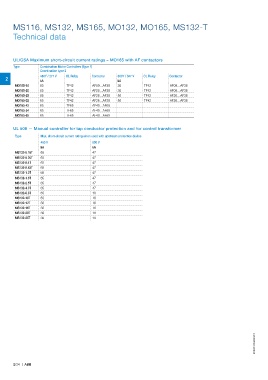

Page 32 - Motor_protection_and_control_Manual_motor_starters_ contactors

MS116, MS132, MS165, MO132, MO165, MS132-T

Technical data

UL/CSA Maximum short-circuit current ratings – MO165 with AF contactors
Type Combination Motor Controllers (Type F)
Coordination type 2
480Y / 277 V OL Relay Contactor 600Y / 347 V OL Relay Contactor
2 kA kA
MO165-16 65 TF42 AF09…AF38 30 TF42 AF09…AF38
MO165-20 65 TF42 AF26…AF38 30 TF42 AF09…AF38
MO165-25 65 TF42 AF26…AF38 50 TF42 AF26…AF38
MO165-32 65 TF42 AF26…AF38 50 TF42 AF26…AF38
MO165-42 65 TF65 AF40…AF65
MO165-54 65 TF65 AF40…AF65
MO165-65 65 TF65 AF40…AF65

UL 508 — Manual controller for tap conductor protection and for control transformer
Type Max. short-circuit current rating when used with upstream protection device
480 V 600 V
kA kA
MS132-0.16T 65 47
MS132-0.25T 65 47
MS132-0.4T 65 47
MS132-0.63T 65 47
MS132-1.0T 65 47
MS132-1.6T 65 47
MS132-2.5T 65 47
MS132-4.0T 65 47
MS132-6.3T 65 18
MS132-10T 65 18
MS132-12T 30 18
MS132-16T 30 18
MS132-20T 30 18
MS132-25T 30 18

2CDC131062C0201

2/24 | ABB
