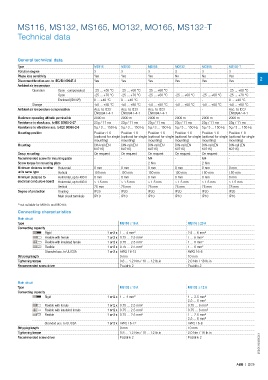

MS116, MS132, MS165, MO132, MO165, MS132-T

Technical data

General technical data
Type MS116 MS132 MS165 MO132 MO165 MS132-T
Pollution degree 3 3 3 3 3 3
Phase loss sensitivity Yes Yes Yes No No Yes
Disconnect function acc. to IEC/EN 60947-2 Yes Yes Yes Yes Yes Yes 2
Ambient air temperature
Operation Open - compensated -25 ... +55 °C -25 ... +60 °C -25 ... +60 °C - - -25 ... +60 °C
Open -25 ... +70 °C -25 ... +70 °C -25 ... +60 °C -25 ... +60 °C -25 ... +60 °C -25 ... +70 °C
Enclosed (IB132 ) 0 ... +40 °C 0 ... +40 °C - - - 0 ... +40 °C
1)
Storage -50 ... +80 °C -50 ... +80 °C -50 ... +80 °C -50 ... +80 °C -50 ... +80 °C -50 ... +80 °C
Ambient air temperature compensation Acc. to IEC/ Acc. to IEC/ Acc. to IEC/ - - Acc. to IEC/
EN60947-4-1 EN60947-4-1 EN60947-4-1 EN60947-4-1
Maximum operating altitude permissible 2000 m 2000 m 2000 m 2000 m 2000 m 2000 m
Resistance to shock acc. to IEC 60068-2-27 25g / 11 ms 25g / 11 ms 25g / 11 ms 25g / 11 ms 25g / 11 ms 25g / 11 ms
Resistance to vibrations acc. to IEC 60068-2-6 5g / 3 ... 150 Hz 5g / 3 ... 150 Hz 5g / 3 ... 150 Hz 5g / 3 ... 150 Hz 5g / 3 ... 150 Hz 5g / 3 ... 150 Hz
Mounting position Position 1-6 Position 1-6 Position 1-6 Position 1-6 Position 1-6 Position 1-6
(optional for single (optional for single (optional for single (optional for single (optional for single (optional for single
mounting) mounting) mounting) mounting) mounting) mounting)
Mounting DIN-rail (EN DIN-rail (EN DIN-rail (EN DIN-rail (EN DIN-rail (EN DIN-rail (EN
60715) 60715) 60715) 60715) 60715) 60715)
Group mounting On request On request On request On request On request -
Recommended screw for mounting plate - - M4 - M4 -
Screw torque for mounting plate - - 2 Nm - 2 Nm -
Minimum distance to other Horizontal 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
units same type Vertical 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
Minimum distance to Horizontal, up to 400 V 0 mm 0 mm 0 mm 0 mm 0 mm 0 mm
electrical conductive board Horizontal, up to 690 V > 1.5 mm > 1.5 mm > 1.5 mm > 1.5 mm > 1.5 mm > 1.5 mm
Vertical 75 mm 75 mm 75 mm 75 mm 75 mm 75 mm
Degree of protection Housing IP20 IP20 IP20 IP20 IP20 IP20
Main circuit terminals IP10 IP10 IP10 IP10 IP10 IP10
1) not suitable for MS165 and MO165
Connecting characteristics
Main circuit
Type MS116 ≤ 16 A MS116 ≥ 20 A
Connecting capacity
Rigid 1 or 2 x 1 ... 4 mm² 2.5 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.75 ... 2.5 mm² 1 ... 6 mm²
Flexible with insulated ferrule 1 or 2 x 0.75 ... 2.5 mm² 1 ... 6 mm²
Flexible 1 or 2 x 0.75 ... 2.5 mm² 1 ... 6 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-12 AWG 16-8
Stripping length 9 mm 10 mm
Tightening torque 0.8 ... 1.2 Nm / 10 … 12 Ib.in 2.0 Nm / 18 Ib.in
Recommended screw driver Pozidriv 2 Pozidriv 2

Main circuit
Type MS132 ≤ 10 A MS132 ≥ 12 A
Connecting capacity
Rigid 1 or 2 x 1 ... 4 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Flexible with ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible with insulated ferrule 1 or 2 x 0.75 ... 2.5 mm² 0.75 ... 6 mm²
Flexible 1 or 2 x 0.75 ... 2.5 mm² 1 ... 2.5 mm²
2.5 ... 6 mm²
Stranded acc. to UL/CSA 1 or 2 x AWG 16-12 AWG 16-8
Stripping length 9 mm 10 mm
Tightening torque 0.8 ... 1.2 Nm / 10 … 12 Ib.in 2.0 Nm / 18 Ib.in
2CDC131062C0201
Recommended screw driver Pozidriv 2 Pozidriv 2
