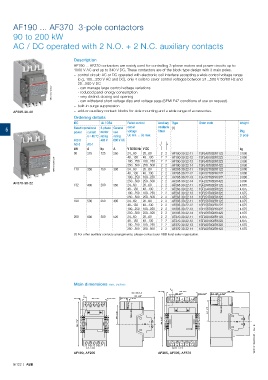

AF190 ... AF370 3-pole contactors

90 to 200 kW
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

Description
AF190 ... AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to
1000 V AC and up to 340 V DC. These contactors are of the block type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range
(e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60 Hz and
20...500 V DC
1SFC101014V0001 - reduced panel energy consumption
- can manage large control voltage variations
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
– built-in surge suppression
AF205-30-22 – add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Ordering details
IEC UL / CSA Rated control Auxiliary Type Order code Weight
5 Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
90 275 125 250 24...60 20...60 2 2 AF190-30-22-11 1SFL487002R1122 3.000
AF190-30-22-12
48...130
3.000
48...130
2 2
1SFL487002R1222
1SFC101020V0001 100...250 100...250 2 2 AF190-30-22-13 1SFL487002R1322 3.000
2 2
1SFL487002R1422
3.000
250...500
250...500
AF190-30-22-14
300
24...60
150
110
350
48...130 20...60 2 2 AF205-30-22-11 1SFL527002R1122 3.000
1SFL527002R1222
3.000
48...130
AF205-30-22-12
2 2
100...250 100...250 2 2 AF205-30-22-13 1SFL527002R1322 3.000
250...500 250...500 2 2 AF205-30-22-14 1SFL527002R1422 3.000
AF370-30-22
132 400 200 350 24...60 20...60 2 2 AF265-30-22-11 1SFL547002R1122 4.675
48...130 48...130 2 2 AF265-30-22-12 1SFL547002R1222 4.675
100...250 100...250 2 2 AF265-30-22-13 1SFL547002R1322 4.675
250...500 250...500 2 2 AF265-30-22-14 1SFL547002R1422 4.675
160 500 250 400 24...60 20...60 2 2 AF305-30-22-11 1SFL587002R1122 4.675
48...130 48...130 2 2 AF305-30-22-12 1SFL587002R1222 4.675
100...250 100...250 2 2 AF305-30-22-13 1SFL587002R1322 4.675
250...500 250...500 2 2 AF305-30-22-14 1SFL587002R1422 4.675
200 600 300 520 24...60 20...60 2 2 AF370-30-22-11 1SFL607002R1122 4.675
48...130 48...130 2 2 AF370-30-22-12 1SFL607002R1222 4.675
100...250 100...250 2 2 AF370-30-22-13 1SFL607002R1322 4.675
250...500 250...500 2 2 AF370-30-22-14 1SFL607002R1422 4.675
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
Main dimensions mm, inches
A
10 0.39" 140 5.51" 180 7.09"
SECTION B-B
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 152 5.98"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"
1SFC101093C0201 - Rev. E

35 1.38" 43.75 1.72"
AF190, AF205 AF265, AF305, AF370

5/122 | ABB
