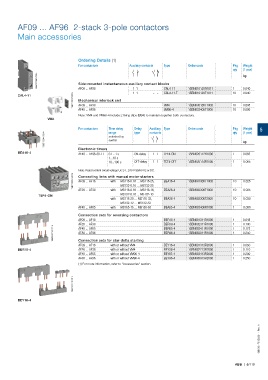

AF09 ... AF96 2-stack 3-pole contactors

Main accessories

Ordering Details (1)
For contactors Auxiliary contacts Type Order code Pkg Weight
qty (1 pce)
1SBC100007V0014 Side-mounted instantaneous auxiliary contact blocks kg

0.040
CAL4-11-T
1 1
1SBN010120T1011
– –
1SBC100010V0014 Mechanical interlock unit VM4 1SBN030105T1000 10 0.005
CAL4-11 AF09 ... AF96 1 1 – – CAL4-11 1SBN010120R1011 1 10 0.040
AF09 ... AF38
AF40 ... AF96 VM96-4 1SBN033405T1000 10 0.006
Note: VM4 and VM96-4 include 2 fixing clips (BB4) to maintain together both contactors.
VM4
For contactors Time delay Delay Auxiliary Type Order code Pkg Weight 5
qty
range
contacts
(1 pce)
type
1SBC100014V0014 selected by kg
switch
Electronic timers
BEA16-4 AF40 ... AF96-30-11 0.1...1 s ON-delay 1 1 TEF4-ON 1SBN020112R1000 1 0.065
1...10 s
10...100 s OFF-delay 1 1 TEF4-OFF 1SBN020114R1000 1 0.065
Note: Rated control circuit voltage Uc 24...240 V 50/60 Hz or DC.
1SBC100004V0014 Connecting links with manual motor starters BEA16-4 1SBN081306T1000 10 0.025
AF09 ... AF16
with
MS116-0.16 … MS116-25,
MS132-0.16 … MS132-25
AF26 ... AF38 with MS116-0.16 … MS116-16, BEA26-4 1SBN082306T1000 10 0.025
TEF4-ON MS132-0.16 ... MS132-10
with MS116-20 … MS116-32, BEA38-4 1SBN082306T2000 10 0.030
MS132-12 ... MS132-32
AF40 ... AF65 with MS165-16 … MS165-65 BEA65-4 1SBN083406R1000 1 0.090
Connection sets for reversing contactors
AF09 ... AF16 BER16-4 1SBN081311R1000 1 0.045
AF26 ... AF38 BER38-4 1SBN082311R1000 1 1 0.100
1SBC100016V0014 AF80 ... AF96 BER96-4 1SBN083911R1000 1 0.250
0.175
BER65-4
1SBN083411R1000
AF40 ... AF65
Connection sets for star-delta starting
AF09 ... AF16 with or without VM4 BEY16-4 1SBN081313R2000 1 0.050
BER16-4 AF26 ... AF38 with or without VM4 BEY38-4 1SBN082713R2000 1 0.110
AF40 ... AF65 with or without VM96-4 BEY65-4 1SBN083413R2000 1 0.200
AF80 ... AF96 with or without VM96-4 BEY96-4 1SBN083913R2000 1 0.250
(1) For more information, refer to "Accessories" section.

1SBC100018V0014

BEY16-4

1SBC101751S0201 - Rev. A

ABB | 5/119
