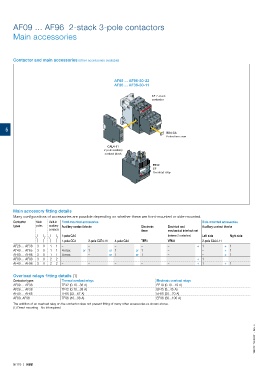

AF09 ... AF96 2-stack 3-pole contactors

Main accessories

Contactor and main accessories (other accessories available)

AF09 ... AF96-30-22
AF26 ... AF38-30-11

AF 2-stack
contactor

5
BX4-CA
Protective cover

CAL4-11
2-pole auxiliary
contact block

TF42
EF
Overload relay

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electronic Electrical and Auxiliary contact blocks
contacts timer mechanical interlock set
1-pole CA4 (between 2 contactors) Left side Right side
1-pole CC4 2-pole CAT4-11 4-pole CA4 TEF4 VEM4 2-pole CAL4-11
AF26 ... AF38 3 0 1 1 – – – – – + 1 + 1
AF40 ... AF65 3 0 1 1 4 max. or 1 or 1 or 1 – – + 1
AF80 ... AF96 3 0 1 1 4 max. – or 1 or 1 – – + 1
AF09 ... AF96 3 0 2 2 – – – – – + 1 –
AF40 ... AF96 3 0 2 2 – – – – – + 1 + 1

Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AF09 ... AF38 TF42 (0.10...38 A) EF19 (0.10...19 A)
AF26 ... AF38 TF42 (0.10...38 A) EF45 (9...45 A)
AF40 ... AF65 TF65 (22...67 A) EF65 (20...70 A)
AF80, AF96 TF96 (40...96 A) EF96 (36...100 A)
The addition of an overload relay on the contactor does not prevent fitting of many other accessories as shown above.
(1) Direct mounting - No kit required.

1SBC101750S0201 - Rev. A

5/118 | ABB
