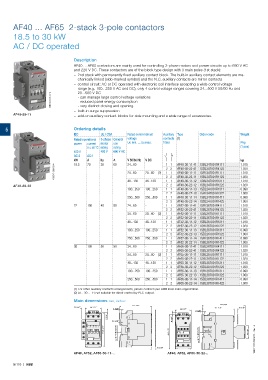

AF40 ... AF65 2-stack 3-pole contactors

18.5 to 30 kW
AC / DC operated

Description
AF40 ... AF65 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
and 220 V DC. These contactors are of the block type design with 3 main poles (1st stack):
– 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements are me-
chanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz and
20...500 V DC
1SBC101005V0014 - can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening.
– built-in surge suppression
AF40-30-11 – add-on auxiliary contact blocks for side mounting and a wide range of accessories.

5 Ordering details
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A 70 hp A 60 V 50/60 Hz V DC 1 1 AF40-30-11-41 1SBL347001R4111 kg
-
1.010
30
24...60
18.5
1SBC101006V0014 24...60 20...60 (2) 2 2 AF40-30-22-41 1SBL347001R4122 1.020
1.010
1 1
AF40-30-11-11 1SBL347001R1111
AF40-30-11-12 1SBL347001R1211
1.010
1 1
48...130 48...130 2 2 AF40-30-22-11 1SBL347001R1122 1.020
AF40-30-22 2 2 AF40-30-22-12 1SBL347001R1222 1.020
100...250 100...250 1 1 AF40-30-11-13 1SBL347001R1311 0.990
2 2 AF40-30-22-13 1SBL347001R1322 1.000
250...500 250...500 1 1 AF40-30-11-14 1SBL347001R1411 0.990
2 2 AF40-30-22-14 1SBL347001R1422 1.000
22 100 40 80 24...60 - 1 1 AF52-30-11-41 1SBL367001R4111 1.010
2 2 AF52-30-22-41 1SBL367001R4122 1.020
24...60 20...60 (2) 1 1 AF52-30-11-11 1SBL367001R1111 1.010
2 2 AF52-30-22-11 1SBL367001R1122 1.020
48...130 48...130 1 1 AF52-30-11-12 1SBL367001R1211 1.010
2 2 AF52-30-22-12 1SBL367001R1222 1.020
100...250 100...250 1 1 AF52-30-11-13 1SBL367001R1311 0.990
2 2 AF52-30-22-13 1SBL367001R1322 1.000
250...500 250...500 1 1 AF52-30-11-14 1SBL367001R1411 0.990
2 2 AF52-30-22-14 1SBL367001R1422 1.000
30 105 50 90 24...60 - 1 1 AF65-30-11-41 1SBL387001R4111 1.010
2 2 AF65-30-22-41 1SBL387001R4122 1.020
24...60 20...60 (2) 1 1 AF65-30-11-11 1SBL387001R1111 1.010
2 2 AF65-30-22-11 1SBL387001R1122 1.020
48...130 48...130 1 1 AF65-30-11-12 1SBL387001R1211 1.010
2 2 AF65-30-22-12 1SBL387001R1222 1.020
100...250 100...250 1 1 AF65-30-11-13 1SBL387001R1311 0.990
2 2 AF65-30-22-13 1SBL387001R1322 1.000
250...500 250...500 1 1 AF65-30-11-14 1SBL387001R1411 0.990
2 2 AF65-30-22-14 1SBL387001R1422 1.000
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
(2) AF..-30-..-11 not suitable for direct control by PLC-output.
Main dimensions mm, inches
144 144 5.67"5.67"
111 4.37"4.37"
111
12 12 0.47"0.47" 55 55 2.17"2.17" 111 111 4.37"4.37" 10 0.39"
10 0.39"
7 7 0.28"0.28" 55 2.17"
55 2.17"
7 0.28"
7 0.28"
6 0.24" 6 0.24"
5.5 5.5 0.22" 0.22" 6 0.24" 6 0.24"
119.5 4.70" 119.5 4.70" 35 mm EN/IEC 60715 35 mm EN/IEC 60715 119.5 4.70" 119.5 4.70" 35 mm EN/IEC 60715 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 43 1.69"
5.5 0.22"
10 10 0.39" 0.39" 1SBC101741S0201 - Rev. A
AF40, AF52, AF65-30-11-.. AF40, AF52, AF65-30-22-..
