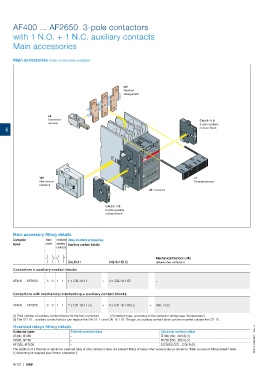

AF400 ... AF2650 3-pole contactors

with 1 N.O. + 1 N.C. auxiliary contacts
Main accessories

Main accessories (other accessories available)

LW
Terminal
enlargement

LZ
Connector CAL18-11B
terminal 2-pole auxiliary
5 contact block

VM LT
Mechanical Terminal shroud
interlock
AF contactor

CAL18-11B
2-pole auxiliary
contact block

Main accessory fitting details
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts

Mechanical interlock units
CAL18-11 CAL18-11B (3) (between two contactors)
Contactors + auxiliary contact blocks

AF400 ... AF2650 3 0 1 1 1 x CAL18-11 + 2 x CAL18-11B –

Contactors with mechanical interlocking + auxiliary contact blocks

AF400 ... AF2650 3 0 1 1 2 x CAL18-11 (1) + 4 x CAL18-11B (1) + VM...H (2)

(1) Total number of auxiliary contact blocks for the two contactors. (2) Interlock type, according to the contactor ratings (see "Accessories").
(3) The CEL18-.. auxiliary contact blocks can replace the CAL18-11 and CAL18-11B. Though, no auxiliary contact block can be mounted outside the CEL18-..
Overload relays fitting details
Contactor types Thermal overload relays Electronic overload relays
AF400, AF460 – EF460 (150...500 A) (1)
AF580, AF750 – EF750 (250...800 A) (1) 1SFC101126C0201 - Rev. A
AF1350, AF1650 – E1250DU (375...1250 A) (1)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(1) Mounting kit required (see "Motor protection").

5/112 | ABB
