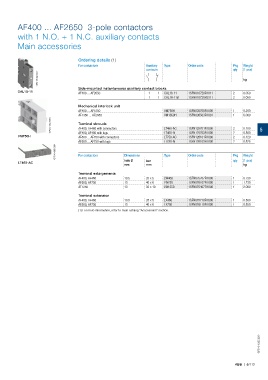

AF400 ... AF2650 3-pole contactors

with 1 N.O. + 1 N.C. auxiliary contacts
Main accessories

Ordering details (1)
For contactors Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
1SFC101082V0001 kg

Side-mounted instantaneous auxiliary contact blocks
CAL18-11 AF400 ... AF2650 1 1 CAL18-11 1SFN010720R1011 2 0.050
1 1 CAL18-11B 1SFN010720R3311 2 0.050

Mechanical interlock unit
AF400 ... AF1250 VM750H 1SFN035700R1000 1 0.200
AF1350 ... AF2650 VM1650H 1SFN036503R1001 1 6.000
1SFC101084V0001 Terminal shrouds LT460-AC 1SFN125701R1000 2 0.100 5

AF400, AF460 with connectors
VM750H AF400, AF460 with lugs LT460-AL 1SFN125703R1000 2 2 0.800
1SFN126101R1000
0.120
LT750-AC
AF580 ... AF750 with connectors
AF580 ... AF750 with lugs LT750-AL 1SFN126103R1000 2 0.825
1SFC101089V0001 For contactors Dimensions Type Order code Pkg Weight
LT460-AC hole Ø bar qty (1 pce)
mm mm kg

Terminal enlargements
AF400, AF460 10.5 25 x 5 LW460 1SFN075707R1000 1 0.730
AF580, AF750 13 40 x 6 LW750 1SFN076107R1000 1 1.230
AF1250 13 50 x 10 LW1250 1SFN076407R1000 1 2.000

Terminal extension
AF400, AF460 10.5 25 x 5 LX460 1SFN075710R1000 1 0.500
AF580, AF750 13 40 x 6 LX750 1SFN076110R1000 1 0.850
(1) For more information, refer to main catalog "Accessories" section.

1SFC101128C0201

ABB | 5/113
