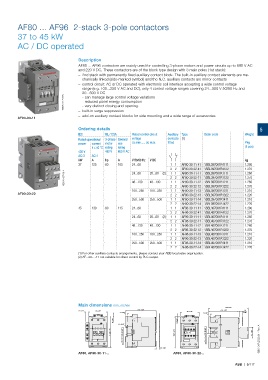

Page 317 - Motor_protection_and_control_Manual_motor_starters_ contactors

AF80 ... AF96 2-stack 3-pole contactors

37 to 45 kW
AC / DC operated

Description
AF80 ... AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
and 220 V DC. These contactors are of the block type design with 3 main poles (1st stack):
– 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements are me-
chanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz and
20...500 V DC
1SBC101017V0014 - reduced panel energy consumption
- can manage large control voltage variations
- very distinct closing and opening.
– built-in surge suppression
– add-on auxiliary contact blocks for side mounting and a wide range of accessories.
AF80-30-11
Ordering details 5
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
37 125 60 105 24...60 - 1 1 AF80-30-11-41 1SBL397001R4111 1.260
2 2 AF80-30-22-41 1SBL397001R4122 1.270
1SBC101007V0014 48...130 48...130 2 2 AF80-30-22-11 1SBL397001R1122 1.270
1 1
AF80-30-11-11 1SBL397001R1111
(2)
24...60
1.260
20...60
1 1
1.260
AF80-30-11-12 1SBL397001R1211
100...250 100...250 2 2 AF80-30-22-12 1SBL397001R1222 1.270
1 1
1.210
AF80-30-11-13 1SBL397001R1311
AF80-30-22 2 2 AF80-30-22-13 1SBL397001R1322 1.220
250...500 250...500 1 1 AF80-30-11-14 1SBL397001R1411 1.210
2 2 AF80-30-22-14 1SBL397001R1422 1.220
45 130 60 115 24...60 - 1 1 AF96-30-11-41 1SBL407001R4111 1.260
2 2 AF96-30-22-41 1SBL407001R4122 1.270
24...60 20...60 (2) 1 1 AF96-30-11-11 1SBL407001R1111 1.260
2 2 AF96-30-22-11 1SBL407001R1122 1.270
48...130 48...130 1 1 AF96-30-11-12 1SBL407001R1211 1.260
2 2 AF96-30-22-12 1SBL407001R1222 1.270
100...250 100...250 1 1 AF96-30-11-13 1SBL407001R1311 1.210
2 2 AF96-30-22-13 1SBL407001R1322 1.220
250...500 250...500 1 1 AF96-30-11-14 1SBL407001R1411 1.210
2 2 AF96-30-22-14 1SBL407001R1422 1.220
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
(2) AF..-30-..-11 not suitable for direct control by PLC-output.

Main dimensions mm, inches
149 5.87" 149 5.87"
116 4.57" 116 4.57"
12 0.47" 12 0.47" 70 2.76" 70 2.76" 70 2.76" 70 2.76" 116 4.57" 116 4.57" 10 10
7 0.28" 7 0.28" 7 0.28" 7 0.28" 0.39" 0.39"
6 0.24" 6 0.24" 6 0.24" 6 0.24"
5.5 0.22" 5.5 0.22"
119.5 4.70" 119.5 4.70" 35 x 15 mm EN/IEC 60715 35 x 15 mm EN/IEC 60715 119.5 4.70" 119.5 4.70" 35 x 15 mm EN/IEC 60715 35 x 15 mm EN/IEC 60715 5.5 5.5 0.22" 0.22" 5.5 5.5 0.22" 0.22" 43 1.69" 43 1.69" 1SBC101742S0201 - Rev. A

10 0.39" 10 0.39"
AF80, AF96-30-11-.. AF80, AF96-30-22-..
