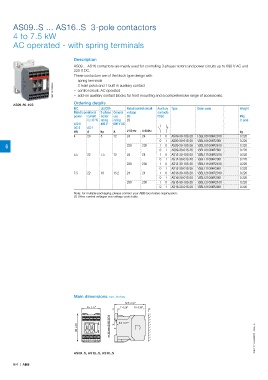

AS09..S ... AS16..S 3-pole contactors

4 to 7.5 kW
AC operated - with spring terminals

Description
AS09 ... AS16 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and
220 V DC.
These contactors are of the block type design with:
– spring terminals
1SBC101009F0014 – control circuit: AC operated
– 3 main poles and 1 built-in auxiliary contact
– add-on auxiliary contact blocks for front mounting and a comprehensive range of accessories.
Ordering details
AS09-30-10S
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50 Hz V 60 Hz kg
4 20 5 12 24 24 1 0 AS09-30-10S-20 1SBL101004R2010 0.220
0 1 AS09-30-01S-20 1SBL101004R2001 0.220
6 230 230 1 0 AS09-30-10S-26 1SBL101004R2610 0.220
0 1 AS09-30-01S-26 1SBL101004R2601 0.220
5.5 22 7.5 12 24 24 1 0 AS12-30-10S-20 1SBL111004R2010 0.220
0 1 AS12-30-01S-20 1SBL111004R2001 0.220
230 230 1 0 AS12-30-10S-26 1SBL111004R2610 0.220
0 1 AS12-30-01S-26 1SBL111004R2601 0.220
7.5 22 10 15.2 24 24 1 0 AS16-30-10S-20 1SBL121004R2010 0.220
0 1 AS16-30-01S-20 1SBL121004R2001 0.220
230 230 1 0 AS16-30-10S-26 1SBL121004R2610 0.220
0 1 AS16-30-01S-26 1SBL121004R2601 0.220
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

Main dimensions mm, inches
72.5 2.85"
35 1.38"
45 1.77" 7 0.28" 10 0.39" 2 x
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 50 1.97"
1SBC101454S0201 - Rev. A

AS09..S, AS12..S, AS16..S
