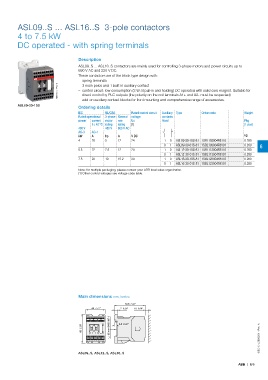

ASL09..S ... ASL16..S  3-pole contactors

         4 to 7.5 kW
         DC operated - with spring terminals



                                    Description
                                    ASL09..S ... ASL16..S contactors are mainly used for controlling 3-phase motors and power circuits up to
                                    690 V AC and 220 V DC.
                                    These contactors are of the block type design with:
                                       – spring terminals
                                       – 3 main poles and 1 built-in auxiliary contact
                           1SBC101011F0014    – control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core magnet. Suitable for
                                      direct control by PLC outputs (the polarity on the coil terminals A1+ and A2- must be respected)

         ASL09-30-10S                  – add-on auxiliary contact blocks for front mounting and comprehensive range of accessories.
                                    Ordering details
                                    IEC         UL/CSA     Rated control circuit  Auxiliary  Type   Order code  Weight
                                    Rated operational  3-phase General  voltage  contacts
                                    power  current  motor  use  Uc       fitted                               Pkg
                                          θ≤ 40 °C rating  rating  (1)                                        (1 pce)
                                    400 V       480 V  600 V AC
                                    AC-3  AC-1
                                    kW    A     hp   A     V DC                                               kg
                                    4     20    5    12    24             1  0  ASL09-30-10S-81 1SBL103004R8110  0.280
                                                                          0  1  ASL09-30-01S-81 1SBL103004R8101  0.280  6
                                    5.5   22    7.5  12    24             1  0  ASL12-30-10S-81 1SBL113004R8110  0.280
                                                                          0  1  ASL12-30-01S-81 1SBL113004R8101  0.280
                                    7.5   22    10   15.2  24             1  0  ASL16-30-10S-81 1SBL123004R8110  0.280
                                                                          0  1  ASL16-30-01S-81 1SBL123004R8101  0.280
                                    Note: for multiple packaging, please contact your ABB local sales organization.
                                    (1) Other control voltages see voltage code table.
































                                    Main dimensions mm, inches
                                                         72.5  2.85"
                                          45  1.77"   7  0.28"  10  0.39"  2 x  35  1.38"
                                                                       M4  8-32 UNC  ø 4.2  0.17"
                                                  35 mm EN/IEC 60715  5.5  0.22"
                                                                                                                    1SBC101455S0201 - Rev. A
                                     68  2.68"                             60  2.36"




                                    ASL09..S, ASL12..S, ASL16..S

                                                                                                           ABB  |  6/5
