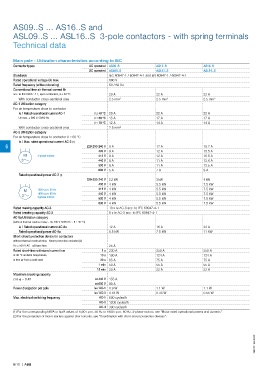

AS09..S ... AS16..S and

ASL09..S ... ASL16..S 3-pole contactors - with spring terminals
Technical data

Main pole - Utilization characteristics according to IEC
Contactor types AC operated AS09..S AS12..S AS16..S
DC operated ASL09..S ASL12..S ASL16..S
Standards IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1
Rated operational voltage Ue max. 690 V
Rated frequency (without derating) 50 / 60 Hz
Conventional free-air thermal current Ith
acc. to IEC 60947-4-1, open contactors, θ ≤ 40 °C 20 A 22 A 22 A
With conductor cross-sectional area 2.5 mm² 2.5 mm² 2.5 mm²
AC-1 Utilization category
For air temperature close to contactor
Ie / Rated operational current AC-1 θ ≤ 40 °C 20 A 22 A 22 A
Ue max. ≤ 690 V, 50/60 Hz θ ≤ 60 °C 15 A 17 A 17 A
θ ≤ 70 °C 12 A 14 A 14 A
With conductor cross-sectional area 2.5 mm²
AC-3 Utilization category
For air temperature close to contactor θ ≤ 60 °C
Ie / Max. rated operational current AC-3 (1)
6 220-230-240 V 9 A 12 A 15.7 A
400 V 9 A 12 A 15.5 A
M 3-phase motors 415 V 9 A 12 A 15.5 A
3 440 V 8 A 11 A 13.6 A
500 V 8 A 11 A 12.5 A
690 V 5 A 7 A 9 A
Rated operational power AC-3 (1)
220-230-240 V 2.2 kW 3 kW 4 kW
400 V 4 kW 5.5 kW 7.5 kW
M 1500 r.p.m. 50 Hz 415 V 4 kW 5.5 kW 7.5 kW
3 1800 r.p.m. 60 Hz 440 V 4 kW 5.5 kW 7.5 kW
3-phase motors
500 V 4 kW 5.5 kW 7.5 kW
690 V 4 kW 5.5 kW 7.5 kW
Rated making capacity AC-3 10 x Ie AC-3 acc. to IEC 60947-4-1
Rated breaking capacity AC-3 8 x Ie AC-3 acc. to IEC 60947-4-1
AC-8a Utilization category
(without thermal overload relay - Ue 400 V 50/60 Hz - θ ≤ 40 °C)
Ie / Rated operational current AC-8a 12 A 16 A 22 A
Rated operational power AC-8a 5.5 kW 7.5 kW 11 kW
Short-circuit protection device for contactors
without thermal overload relay - Motor protection excluded (2)
Ue ≤ 500 V AC - gG type fuse 25 A
Rated short-time withstand current Icw 1 s 230 A 250 A 250 A
at 40 °C ambient temperature, 10 s 100 A 124 A 124 A
in free air from a cold state 30 s 65 A 75 A 75 A
1 min 50 A 55 A 55 A
15 min 20 A 22 A 22 A
Maximum breaking capacity
cos φ = 0.45 at 440 V 155 A
at 690 V 90 A
Power dissipation per pole Ie / AC-1 0.9 W 1.1 W 1.1 W
Ie / AC-3 0.18 W 0.33 W 0.55 W
Max. electrical switching frequency AC-1 600 cycles/h
AC-3 1200 cycles/h
AC-4 300 cycles/h
(1) For the corresponding kW/A or hp/A values of 1500 r.p.m, 50 Hz or 1800 r.p.m, 60 Hz, 3-phase motors, see "Motor rated operational powers and currents".
(2) For the protection of motor starters against short circuits, see "Coordination with short-circuit protection devices".
