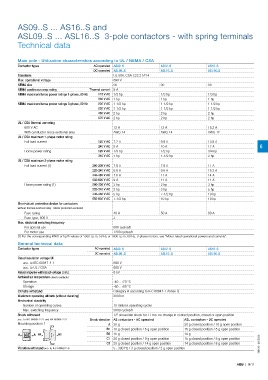

AS09..S ... AS16..S and

ASL09..S ... ASL16..S 3-pole contactors - with spring terminals
Technical data

Main pole - Utilization characteristics according to UL / NEMA / CSA
Contactor types AC operated AS09..S AS12..S AS16..S
DC operated ASL09..S ASL12..S ASL16..S
Standards UL 508, CSA C22.2 N°14
Max. operational voltage 690 V
NEMA size 00 00 00
NEMA continuous amp rating Thermal current 9 A
NEMA maximum horse power ratings 1-phase, 60 Hz 115 V AC 1/3 hp 1/3 hp 1/3 hp
230 V AC 1 hp 1 hp 1 hp
NEMA maximum horse power ratings 3-phase, 60 Hz 200 V AC 1-1/2 hp 1-1/2 hp 1-1/2 hp
230 V AC 1-1/2 hp 1-1/2 hp 1-1/2 hp
460 V AC 2 hp 2 hp 2 hp
575 V AC 2 hp 2 hp 2 hp
UL / CSA General use rating
600 V AC 12 A 12 A 15.2 A
With conductor cross-sectional area AWG 14 AWG 14 AWG 12
UL / CSA maximum 1-phase motor rating
Full load current 120 V AC 7.2 A 9.8 A 13.8 A
240 V AC 8 A 10 A 12 A 6
Horse power rating 120 V AC 1/3 hp 1/2 hp 3/4 hp
240 V AC 1 hp 1-1/2 hp 2 hp
UL / CSA maximum 3-phase motor rating
Full load current (1) 200-208 V AC 7.8 A 7.8 A 11 A
220-240 V AC 6.8 A 9.6 A 15.2 A
440-480 V AC 7.6 A 11 A 14 A
550-600 V AC 9 A 11 A 11 A
Horse power rating (1) 200-208 V AC 2 hp 2 hp 3 hp
220-240 V AC 2 hp 3 hp 5 hp
440-480 V AC 5 hp 7-1/2 hp 10 hp
550-600 V AC 7-1/2 hp 10 hp 10 hp
Short-circuit protection device for contactors
without thermal overload relay - Motor protection excluded
Fuse rating 40 A 50 A 60 A
Fuse type, 600 V J
Max. electrical switching frequency
For general use 600 cycles/h
For motor use 1200 cycles/h
(1) For the corresponding kW/A or hp/A values of 1500 r.p.m, 50 Hz or 1800 r.p.m, 60 Hz, 3-phase motors, see "Motor rated operational powers and currents".
General technical data
Contactor types AC operated AS09..S AS12..S AS16..S
DC operated ASL09..S ASL12..S ASL16..S
Rated insulation voltage Ui
acc. to IEC 60947-4-1 690 V
acc. to UL / CSA 600 V
Rated impulse withstand voltage Uimp. 6 kV
Ambient air temperature close to contactor
Operation -40...+70 °C
Storage -60...+80 °C
Climatic withstand Category B according to IEC 60947-1 Annex Q
Maximum operating altitude (without derating) 3000 m
Mechanical durability
Number of operating cycles 10 millions operating cycles
Max. switching frequency 3600 cycles/h
Shock withstand 1/2 sinusoidal shock for 11 ms: no change in contact position, closed or open position
acc. to IEC 60068-2-27 and EN 60068-2-27 Shock direction AS contactors - AC operated ASL contactors - DC operated
Mounting position 1 A 20 g 20 g closed position / 10 g open position
C1
B1 10 g closed position / 5 g open position 15 g closed position / 5 g open position
A A B1 B2 B2 15 g 10 g
C1 20 g closed position / 9 g open position 15 g closed position / 8 g open position
C2 C2 20 g closed position / 14 g open position 14 g closed position / 8 g open position 1SBC101490S0201
Vibration withstand acc. to IEC 60068-2-6 5...300 Hz / 3 g closed position / 2 g open position

ABB | 6/11
