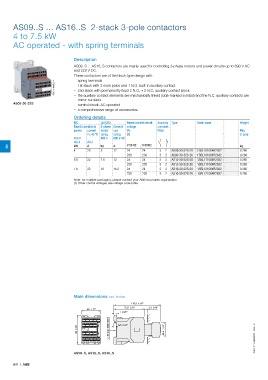

P. 630

AS09..S ... AS16..S  2-stack 3-pole contactors

       4 to 7.5 kW
       AC operated - with spring terminals



                                  Description
                                  AS09..S ... AS16..S contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
                                  and 220 V DC.
                                  These contactors are of the block type design with:
                                     – spring terminals
                         1SBC101333F0014    – 1st stack with 3 main poles and 1 N.O. built-in auxiliary contact
                                     – 2nd stack with permanently fixed 2 N.O. + 2 N.C. auxiliary contact block
                                     – the auxiliary contact elements are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are
                                    mirror contacts
       AS09-30-32S                   – control circuit: AC operated
                                     – a comprehensive range of accessories.
                                  Ordering details
                                  IEC         UL/CSA     Rated control circuit  Auxiliary  Type   Order code  Weight
                                  Rated operational  3-phase General  voltage  contacts
                                  power  current  motor  use  Uc       fitted                               Pkg
                                        θ≤ 40 °C rating  rating  (1)                                        (1 pce)
                                  400 V       480 V  600 V AC
                                  AC-3  AC-1
    6                             kW    A     hp   A     V 50 Hz  V 60 Hz                                   kg
                                  4     20    5    12    24     24      3  2  AS09-30-32S-20  1SBL101004R2032  0.260
                                                         230    230     3  2  AS09-30-32S-26  1SBL101004R2632  0.260
                                  5.5   22    7.5  12    24     24      3  2  AS12-30-32S-20  1SBL111004R2032  0.260
                                                         230    230     3  2  AS12-30-32S-26  1SBL111004R2632  0.260
                                  7.5   22    10   15.2  24     24      3  2  AS16-30-32S-20  1SBL121004R2032  0.260
                                                         230    230     3  2  AS16-30-32S-26  1SBL121004R2632  0.260
                                  Note: for multiple packaging, please contact your ABB local sales organization.
                                  (1) Other control voltages see voltage code table.






























                                  Main dimensions mm, inches
                                                           110.8  4.36"
                                                        72.5  2.85"  10  0.39"
                                        45  1.77"
                                                      7  0.28"
                                                 35 mm EN/IEC 60715  5.5  0.22"
                                   68  2.68"                              35.4  1.39"                             1SBC101456S0201 - Rev. A





                                  AS09..S, AS12..S, AS16..S

       6/6  |  ABB
