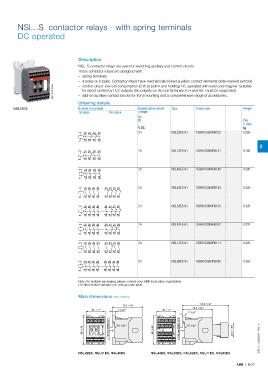

Page 647 - Motor_protection_and_control_Manual_motor_starters_ contactors

NSL..S contactor relays - with spring terminals

DC operated

Description
NSL..S contactor relays are used for switching auxiliary and control circuits.
These contactor relays are designed with:
– spring terminals
– 4 poles or 8 poles. Contactor relays have mechanically linked auxiliary contact elements (side-marked symbol)
1SBC101021F0014 – add-on auxiliary contact blocks for front mounting and a comprehensive range of accessories.
– control circuit: low coil consumption (3 W at pull-in and holding) DC operated with solid core magnet. Suitable
for direct control by PLC outputs (the polarity on the coil terminals A1+ and A2- must be respected)

Ordering details
NSL22ES Number of contacts Rated control circuit Type Order code Weight
1st stack 2nd stack voltage
Uc
(1) Pkg
(1 pce)
V DC kg
A1+ 13 21 31 43 24 NSL22ES-81 1SBH103004R8122 0.280
NO NC NC NO
NO NC NC NO
A2- 14 22 32 44
6
A1+ 13 21 33 43 24 NSL31ES-81 1SBH103004R8131 0.280
NO NC NO NO
A2- NO 14 NC 22 NO 34 NO 44
A1+ 13 23 33 43 24 NSL40ES-81 1SBH103004R8140 0.280
NO NO NO NO
NO NO NO NO
A2- 14 24 34 44
A1+ 13 23 33 43 51 61 71 81 24 NSL44ES-81 1SBH103004R8144 0.320
NO NO NO NO NC NC NC NC
NO NO NO NO NC NC NC NC
A2- 14 24 34 44 52 62 72 82
A1+ 13 23 33 43 53 61 71 81 24 NSL53ES-81 1SBH103004R8153 0.320
NO NO NO NO NO NC NC NC
A2- NO 14 NO 24 NO 34 NO 44 NO 54 NC 62 NC 72 NC 82

A1+ 13 23 33 43 53 61 71 83 24 NSL62ES-81 1SBH103004R8162 0.320
NO NO NO NO NO NC NC NO
A2- NO 14 NO 24 NO 34 NO 44 NO 54 NC 62 NC 72 NO 84

A1+ 13 23 33 43 53 61 73 83 24 NSL71ES-81 1SBH103004R8171 0.320
NO NO NO NO NO NC NO NO
NO NO NO NO NO NC NO NO
A2- 14 24 34 44 54 62 74 84
A1+ 13 23 33 43 53 63 73 83 24 NSL80ES-81 1SBH103004R8180 0.320
NO NO NO NO NO NO NO NO
NO NO NO NO NO NO NO NO
A2- 14 24 34 44 54 64 74 84
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

Main dimensions mm, inches
110.8 4.36"
72.5 2.85"
72.5 2.85"
45 1.77" 7 0.28" 45 1.77"
7 0.28"
35 mm EN/IEC 60715 5.5 0.22" 35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 68 2.68" 35.4 1.39" 1SBC101482S0201 - Rev. A

NSL22ES, NSL31ES, NSL40ES NSL44ES, NSL53ES, NSL62ES, NSL71ES, NSL80ES

ABB | 6/23
