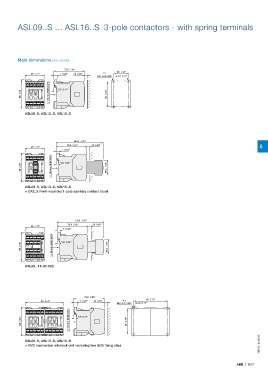

ASL09..S ... ASL16..S  3-pole contactors - with spring terminals








         Main dimensions mm, inches

                              72.5  2.85"
               45  1.77"    7  0.28"  10  0.39"  2 x  35  1.38"
                                            M4  8-32 UNC  ø 4.2  0.17"
                       35 mm EN/IEC 60715  5.5  0.22"
          68  2.68"                             60  2.36"




            ASL09..S, ASL12..S, ASL16..S






                                  110.8  4.36"
                               72.5  2.85"  10  0.39"         35  1.38"
               45  1.77"                               2 x                                                          6
                             7  0.28"                M4  8-32 UNC  ø 4.2  0.17"
                        35 mm EN/IEC 60715  5.5  0.22"
          68  2.68"                             35.4  1.39"  60  2.36"




            ASL09..S, ASL12..S, ASL16..S
            + CA3..S front-mounted 1-pole auxiliary contact block







                                  110.8  4.36"
                               72.5  2.85"  10  0.39"         35  1.38"
               45  1.77"                                2 x
                             7  0.28"                M4  8-32 UNC  ø 4.2  0.17"
                        35 mm EN/IEC 60715  5.5  0.22"
          68  2.68"                              35.4  1.39"  60  2.36"




            ASL09...16-30-32S







                                      72.5  2.85"
                   90  3.54"        7  0.28"  10  0.39"  4 x      80  3.15"
                                                             ø 4.2  0.17"
                                                     M4  8-32 UNC  ø 4.2  0.17"
                                35 mm EN/IEC 60715  5.5  0.22"
          68  2.68"                                      60  2.36"


                                                                                                                    1SBC101414S0201
            ASL09..S, ASL12..S, ASL16..S
            + VM3 mechanical interlock unit including two BB3 fixing clips
