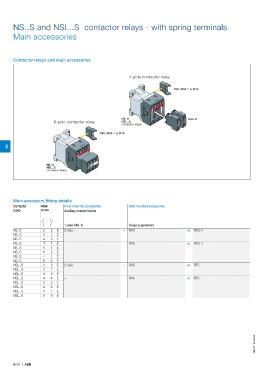

NS..S and NSL..S contactor relays - with spring terminals

Main accessories

Contactor relays and main accessories

4-pole contactor relay

RV5, RC5-1 or RT5

NS..S CA3..S
8-pole contactor relay NSL..S
Contactor relays
RV5, RC5-1 or RT5

6

NS..S
NSL..S
Contactor relays

Main accessory fitting details
Contactor Main Front-mounted accessories Side-mounted accessories
types poles Auxiliary contact blocks

1-pole CA3..S Surge suppressors
NS..S 2 2 E 2 max. + RV5 or RC5-1
NS..S 3 1 E
NS..S 4 0 E
NS..S 4 4 E – RV5 or RC5-1
NS..S 5 3 E
NS..S 6 2 E
NS..S 7 1 E
NS..S 8 0 E
NSL..S 2 2 E 2 max. + RV5 or RT5
NSL..S 3 1 E
NSL..S 4 0 E
NSL..S 4 4 E – RV5 or RT5
NSL..S 5 3 E
NSL..S 6 2 E
NSL..S 7 1 E
NSL..S 8 0 E

1SBC101415S0201

6/24 | ABB
