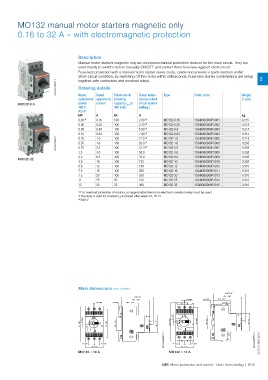

MO132 manual motor starters magnetic only
0.16 to 32 A – with electromagnetic protection

Description
Manual motor starters magnetic only are electromechanical protection devices for the main circuit. They are
used mainly to switch motors manually ON/OFF and protect them fuse-less against short-circuit.
Fuse-less protection with a manual motor starter saves costs, space and ensures a quick reaction under
short-circuit condition, by switching off the motor within milliseconds. Fuse-less starter combinations are setup 2
together with contactors and overload relays.
2CDC241009F0011 Ordering details Short-circuit Rated instan- Type Order code Weight

Rated
Rated
current
circuit current
power
capacity I at
MO132-6.3 operational operational breaking CS taneous short- (1 pce)
400 V 400 V AC setting l i
AC-3 1)
kW A kA A kg
0.03 3) 0.16 100 2.00 2) MO132-0.16 1SAM360000R1001 0.215
0.06 0.25 100 3.10 2) MO132-0.25 1SAM360000R1002 0.215
0.09 0.40 100 5.00 2) MO132-0.4 1SAM360000R1003 0.215
0.12 0.63 100 7.90 2) 2) MO132-0.63 1SAM360000R1004 0.215
2CDC241008F0011 0.55 1.6 100 20.0 2) 2) MO132-1.6 1SAM360000R1006 0.265
1SAM360000R1005
12.5
100
1.0
0.25
MO132-1.0
0.215
0.265
2.5
MO132-2.5
100
0.75
31.3
1SAM360000R1007
1SAM360000R1008
1.5
4.0
MO132-4.0
50.0
100
0.265
MO132-32 2.2 6.3 100 78.8 MO132-6.3 1SAM360000R1009 0.265
4.0 10 100 125 MO132-10 1SAM360000R1010 0.265
5.5 12 100 150 MO132-12 1SAM360000R1012 0.310
7.5 16 100 200 MO132-16 1SAM360000R1011 0.310
7.5 20 100 250 MO132-20 1SAM360000R1013 0.310
11 25 50 313 MO132-25 1SAM360000R1014 0.310
15 32 25 400 MO132-32 1SAM360000R1015 0.310
1) For overload protection of motors, an appropriate thermal or electronic overload relay must be used
2) The data is valid for products, produced after week 34, 2014.
690 V
3)

Main dimensions mm, inches
81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"

0.1"
0.1" 3.85" 1.7 2.95" 1.77"
3.54" 1.7 2.95" 1.38" 1.77" 97.8 75 1.38" 35 45
90 75 35 45"
2CDC242005F0011 2CDC242006F0011

14 0.55" 14 0.55" 14 0.55" 14 0.55" 2CDC131062C0201a
45 1.77" 45 1.77"
MO132 ≤ 10 A MO132 ≥ 12 A

ABB Motor protection and control - short form catalog | 2/13
