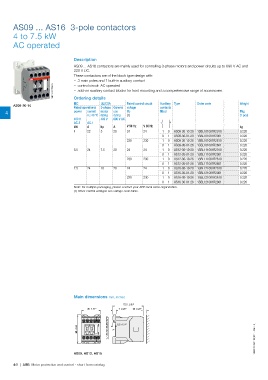

AS09 ... AS16 3-pole contactors

4 to 7.5 kW
AC operated

Description
AS09 ... AS16 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and
220 V DC.
These contactors are of the block type design with:
– 3 main poles and 1 built-in auxiliary contact
– control circuit: AC operated
1SBC101007F0014 – add-on auxiliary contact blocks for front mounting and a comprehensive range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
AS09-30-10
Rated operational 3-phase General voltage contacts
4 power current motor use Uc fitted Pkg
(1 pce)
(1)
rating
θ≤ 40 °C rating
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50 Hz V 60 Hz kg
4 22 5 20 24 24 1 0 AS09-30-10-20 1SBL101001R2010 0.220
0 1 AS09-30-01-20 1SBL101001R2001 0.220
230 230 1 0 AS09-30-10-26 1SBL101001R2610 0.220
0 1 AS09-30-01-26 1SBL101001R2601 0.220
5.5 24 7.5 20 24 24 1 0 AS12-30-10-20 1SBL111001R2010 0.220
0 1 AS12-30-01-20 1SBL111001R2001 0.220
230 230 1 0 AS12-30-10-26 1SBL111001R2610 0.220
0 1 AS12-30-01-26 1SBL111001R2601 0.220
7.5 24 10 20 24 24 1 0 AS16-30-10-20 1SBL121001R2010 0.220
0 1 AS16-30-01-20 1SBL121001R2001 0.220
230 230 1 0 AS16-30-10-26 1SBL121001R2610 0.220
0 1 AS16-30-01-26 1SBL121001R2601 0.220
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

Main dimensions mm, inches
72.5 2.85"
35 1.38"
45 1.77" 7 0.28" 10 0.39" 2 x
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 50 1.97" 1SBC101301S0201 - Rev. A

AS09, AS12, AS16
