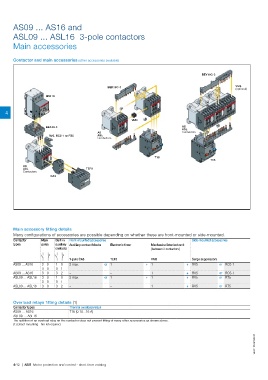

AS09 ... AS16 and

ASL09 ... ASL16 3-pole contactors
Main accessories

Contactor and main accessories (other accessories available)

BEY16C-3

BER16C-3 VM3
(optional)
MS116

4

VM3
BEA16-3 AS
ASL
AS Contactors
RV5, RC5-1 or RT5 ASL
Contactors

T16
T16
AS
ASL TEF3
Contactors
CA3

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electronic timer Mechanical interlock unit
contacts (between 2 contactors)

1-pole CA3 TEF3 VM3 Surge suppressors
AS09 ... AS16 3 0 1 0 2 max. or 1 + 1 + RV5 or RC5-1
3 0 0 1
AS09 ... AS16 3 0 3 2 – – 1 + RV5 or RC5-1
ASL09 ... ASL16 3 0 1 0 2 max. or 1 + 1 + RV5 or RT5
3 0 0 1
ASL09 ... ASL16 3 0 3 2 – – 1 + RV5 or RT5

Overload relays fitting details (1)
Contactor types Thermal overload relays
AS09 … AS16 T16 (0.10...16 A)
ASL09 … ASL16
The addition of an overload relay on the contactor does not prevent fitting of many other accessories as shown above.
(1) Direct mounting - No kit required.

1SBC101297S0201

4/12 | ABB Motor protection and control - short form catalog
