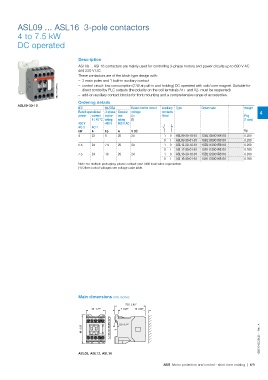

Page 65 - 1SBC100195C0203_Short_form_motor_protection_ control

Time)
Time)
Time)

ASL09 ... ASL16 3-pole contactors

4 to 7.5 kW
DC operated

Description
ASL09 ... ASL16 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
and 220 V DC.
These contactors are of the block type design with:
– 3 main poles and 1 built-in auxiliary contact
– control circuit: low consumption (3 W at pull-in and holding) DC operated with solid core magnet. Suitable for
1SBC101010F0014 – add-on auxiliary contact blocks for front mounting and a comprehensive range of accessories.
direct control by PLC outputs (the polarity on the coil terminals A1+ and A2- must be respected)

Ordering details
ASL09-30-10
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts 4
power current motor use Uc fitted Pkg
θ≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V DC kg
4 22 5 20 24 1 0 ASL09-30-10-81 1SBL103001R8110 0.280
0 1 ASL09-30-01-81 1SBL103001R8101 0.280
5.5 24 7.5 20 24 1 0 ASL12-30-10-81 1SBL113001R8110 0.280
0 1 ASL12-30-01-81 1SBL113001R8101 0.280
7.5 24 10 20 24 1 0 ASL16-30-10-81 1SBL123001R8110 0.280
0 1 ASL16-30-01-81 1SBL123001R8101 0.280
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

Main dimensions mm, inches
72.5 2.85"
45 1.77" 7 0.28" 10 0.39" 2 x 35 1.38"
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 1SBC101302S0201 - Rev. A

ASL09, ASL12, ASL16

ABB Motor protection and control - short form catalog | 4/9
