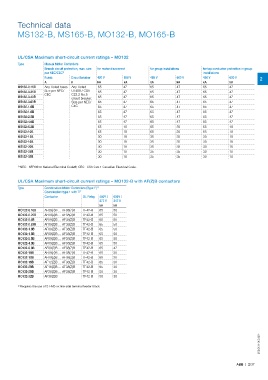

Technical data
MS132-B, MS165-B, MO132-B, MO165-B

UL/CSA Maximum short-circuit current ratings – MO132
Type Manual Motor Controllers
Branch circuit protection, max. size for motor disconnect for group installations for tap conductor protection in group
per NEC/CEC 1) installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V 480 V 600 V 2
A A kA kA kA kA kA kA
MS132-0.16B Any Listed fuses. Any Listed 65 47 65 47 65 47
MS132-0.25B Size per NEC/ UL489 / CSA 65 47 65 47 65 47
MS132-0.40B CEC C22.2 No.5 65 47 65 47 65 47
circuit breaker.
MS132-0.63B Size per NEC/ 65 47 65 47 65 47
MS132-1.0B CEC 65 47 65 47 65 47
MS132-1.6B 65 47 65 47 65 47
MS132-2.5B 65 47 65 47 65 47
MS132-4.0B 65 47 65 47 65 47
MS132-6.3B 65 18 65 35 65 18
MS132-10B 65 18 65 35 65 18
MS132-12B 30 18 35 35 30 18
MS132-16B 30 18 35 35 30 18
MS132-20B 30 18 35 35 30 18
MS132-25B 30 18 35 35 30 18
MS132-32B 30 18 35 35 30 18

1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MO132-B with AF(Z)B contactors
Type Combination Motor Controllers (Type F) 1)
Coordination type 1 with TF
Contactor OL Relay 480Y / 600Y /
277 V 347 V
kA kA
MO132-0.16B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-0.25B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-0.4B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-0.63B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-1.0B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-1.6B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-2.5B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-4.0B AF09(Z)B ... AF38(Z)B TF42-B 65 50
MO132-6.3B AF09(Z)B ... AF38(Z)B TF42-B 65 47
MO132-10B AF09(Z)B ... AF38(Z)B TF42-B 65 30
MO132-12B AF09(Z)B ... AF38(Z)B TF42-B 65 30
MO132-16B AF12(Z)B ... AF38(Z)B TF42-B 65 30
MO132-20B AF16(Z)B ... AF38(Z)B TF42-B 65 30
MO132-25B AF26(Z)B ... AF38(Z)B TF42-B 50 30
MO132-32B AF38(Z)B TF42-B 50 30

Requires the use of S1-M3-xx line-side terminal feeder block.
1)

2CDC131100C0201

ABB | 2/37
