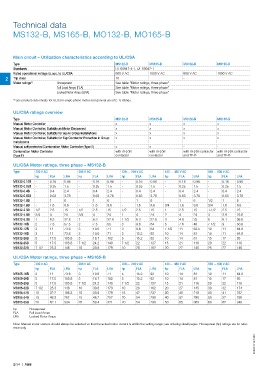

Technical data
MS132-B, MS165-B, MO132-B, MO165-B

Main circuit – Utilization characteristics according to UL/CSA
Type MS132-B MS165-B MO132-B MO165-B
Standards UL 60947-4-1, UL 60947-1
Rated operational voltage U e acc. to UL/CSA 600 V AC 1000 V AC 600 V AC 1000 V AC
2 Trip class 10 -
Motor ratings 1) Horsepower See table "Motor ratings, three phase"
Full Load Amps (FLA) See table "Motor ratings, three phase"
Locked Rotor Amps (LRA) See table "Motor ratings, three phase"
1) See product data sheets for UL/CSA single phase motor and general use (AC-1) ratings.

UL/CSA ratings overview
Type MS132-B MS165-B MO132-B MO165-B
Manual Motor Controller x x x x
Manual Motor Controller, Suitable as Motor Disconnect x x x x
Manual Motor Controller, Suitable for use in Group Installations x x x x
Manual Motor Controller, Suitable for Tap Conductor Protection in Group x x x x
Installations
Manual self-protected Combination Motor Controller (Type E) x x - -
Combination Motor Controller with AF(Z)B with AF(Z)B with AF(Z)B contactor with AF(Z)B contactor
(Type F) contactor contactor and TF-B and TF-B

UL/CSA Motor ratings, three phase – MS132-B
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MS132-0.16B - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96
MS132-0.25B - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5
MS132-0.4B - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4
MS132-0.63B - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78
MS132-1.0B - 1 6 - 1 6 - 1 6 - 1 6 1/2 1 6
MS132-1.6B - 1.6 9.6 - 1.6 9.6 - 1.6 9.6 3/4 1.6 9.6 3/4 1.6 9.6
MS132-2.5B 1/2 2.5 15 1/2 2.5 15 1/2 2.5 15 1 2.5 15 1-1/2 2.5 15
MS132-4.0B 3/4 4 24 3/4 4 24 1 4 24 2 4 24 3 3.9 25.6
MS132-6.3B 1 6.3 37.8 1 6.3 37.8 1 1/2 6.3 37.8 3 4.8 32 5 6.1 36.8
MS132-10B 2 7.8 57.5 2 7.5 55 3 9.6 64 5 7.6 46 7 1/2 9 50.8
MS132-12B 3 11 73.6 3 10.6 71 3 9.6 64 7 1/2 11 63.5 10 11 64.8
MS132-16B 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MS132-20B 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MS132-25B 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MS132-32B 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 25 27 146
UL/CSA Motor ratings, three phase – MS165-B
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MS165-16B 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MS165-20B 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MS165-25B 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MS165-32B 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 30 32 174
MS165-42B 10 32.2 186.3 10 30.8 179 15 42 232 30 40 218 40 41 232
MS165-54B 15 48.3 267 15 46.2 257 20 54 290 40 52 290 50 52 290
MS165-65B 20 62.1 334 20 59.4 321 20 54 290 50 65 363 60 62 348
hp Horsepower
FLA Full Load Amps
LRA Locked Rotor Amps
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range; see ordering detail pages. Horsepower (hp) ratings are for refer-
ence only.
