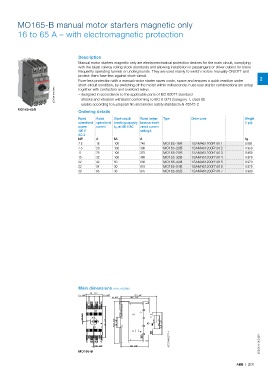

MO165-B manual motor starters magnetic only
16 to 65 A – with electromagnetic protection

Description
Manual motor starters magnetic only are electromechanical protection devices for the main circuit, complying
with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains
frequently operating tunnels or undergrounds. They are used mainly to switch motors manually ON/OFF and
protect them fuse-less against short-circuit.
Fuse-less protection with a manual motor starter saves costs, space and ensures a quick reaction under 2
short-circuit condition, by switching off the motor within milliseconds. Fuse-less starter combinations are setup
2CDC241015V0016 – designed in accordance to the applicable parts of IEC 60077 standard
together with contactors and overload relays.
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– usable according to European fire and smoke safety standard EN 45545-2
MO165-65B
Ordering details
Rated Rated Short-circuit Rated instan- Type Order code Weight
operational operational breaking capacity taneous short- (1 pc)
power current I CS at 400 V AC circuit current
400 V setting l i
AC-3
kW A kA A kg
7.5 16 100 240 MO165-16B 1SAM461200R1011 0.950
7.5 20 100 300 MO165-20B 1SAM461200R1012 0.950
11 25 100 375 MO165-25B 1SAM461200R1013 0.960
15 32 100 480 MO165-32B 1SAM461200R1014 0.970
22 42 50 630 MO165-42B 1SAM461200R1015 0.970
22 54 30 810 MO165-54B 1SAM461200R1016 0.970
30 65 30 975 MO165-65B 1SAM461200R1017 0.980

Main dimensions mm, inches
55 2.17"
17.5 0.69" 17.5 0.69" 122.1 4.81"
5.5 0.22" 95.5 3.76"

0.07"
1.75
4.17" 5.62" 1.38" 44.9 1.77" 3.01"
106 142.65 35 76.35
2CDC242002F0014

2.05 0.08" 93.5 3.68" 2CDC131100C0201
MO165-B
