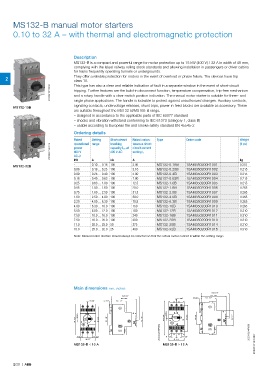

MS132-B manual motor starters
0.10 to 32 A – with thermal and electromagnetic protection

Description
MS132-B is a compact and powerful range for motor protection up to 15 kW (400 V) / 32 A in width of 45 mm,
complying with the latest railway rolling stock standards and allowing installation in passengers or driver cabins
for trains frequently operating tunnels or undergrounds.
2 They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip
class 10.
This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit
2CDC241017V0016 tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism
and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and
single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts,
signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These
MS132-10B
are suitable throughout the MS132-B/MS165-B range.
– designed in accordance to the applicable parts of IEC 60077 standard
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
– usable according to European fire and smoke safety standard EN 45545-2
Ordering details
Rated Setting Short-circuit Rated instan- Type Order code Weight
operational range
(1 pc)
taneous short-
breaking
2CDC241016V0016 power capacity I CS at circuit current
400 V AC
400 V
setting l i
AC-3
kA
0.215
- kW A 0.10 … 0.16 100 A 2.00 MS132-0.16B 1SAM350200R1001 kg
MS132-32B
0.06 0.16 … 0.25 100 3.10 MS132-0.25B 1SAM350200R1002 0.215
0.09 0.25 … 0.40 100 5.00 MS132-0.4B 1SAM350200R1003 0.215
0.18 0.40 … 0.63 100 7.90 MS132-0.63B 1SAM350200R1004 0.215
0.25 0.63 … 1.00 100 12.5 MS132-1.0B 1SAM350200R1005 0.215
0.55 1.00 … 1.60 100 20.0 MS132-1.6B 1SAM350200R1006 0.265
0.75 1.60 … 2.50 100 31.3 MS132-2.5B 1SAM350200R1007 0.265
1.50 2.50 … 4.00 100 50.0 MS132-4.0B 1SAM350200R1008 0.265
2.20 4.00 … 6.30 100 78.8 MS132-6.3B 1SAM350200R1009 0.265
4.00 6.30 … 10.0 100 150 MS132-10B 1SAM350200R1010 0.265
5.50 8.00 … 12.0 100 180 MS132-12B 1SAM350200R1012 0.310
7.50 10.0 … 16.0 100 240 MS132-16B 1SAM350200R1011 0.310
7.50 16.0 … 20.0 100 300 MS132-20B 1SAM350200R1013 0.310
11.0 20.0 … 25.0 50 375 MS132-25B 1SAM350200R1014 0.310
15.0 25.0 … 32.0 25 480 MS132-32B 1SAM350200R1015 0.310
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range.

Main dimensions mm, inches
81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"
0.1"
0.1" 3.85" 1.7 2.95"
3.54" 1.7 2.95" 1.38" 1.77" 97.8 75 1.38" 35 1.77" 45
90 75 35 45"
2CDC242015F0009 2CDC242016F0009

14 0.55" 14 0.55" 14 0.55" 14 0.55"
45 1.77" 45 1.77"
MS132-B ≤ 10 A MS132-B ≥ 12 A 2CDC131100C0201
