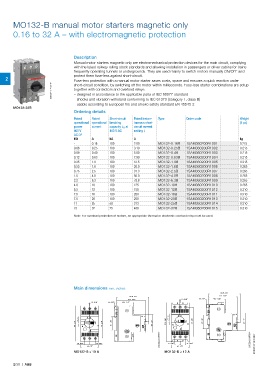

MO132-B manual motor starters magnetic only
0.16 to 32 A – with electromagnetic protection

Description
Manual motor starters magnetic only are electromechanical protection devices for the main circuit, complying
with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains
frequently operating tunnels or undergrounds. They are used mainly to switch motors manually ON/OFF and
protect them fuse-less against short-circuit.
2 Fuse-less protection with a manual motor starter saves costs, space and ensures a quick reaction under
short-circuit condition, by switching off the motor within milliseconds. Fuse-less starter combinations are setup
2CDC241014V0016 together with contactors and overload relays.
– designed in accordance to the applicable parts of IEC 60077 standard
– shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
MO132-32B – usable according to European fire and smoke safety standard EN 45545-2
Ordering details
Rated Rated Short-circuit Rated instan- Type Order code Weight
operational operational breaking taneous short- (1 pc)
power current capacity I CS at circuit current
400 V 400 V AC setting l i
AC-3 1)
kW A kA A kg
- 0.16 100 2.00 MO132-0.16B 1SAM360200R1001 0.215
0.06 0.25 100 3.10 MO132-0.25B 1SAM360200R1002 0.215
0.09 0.40 100 5.00 MO132-0.4B 1SAM360200R1003 0.215
0.12 0.63 100 7.90 MO132-0.63B 1SAM360200R1004 0.215
0.25 1.0 100 12.5 MO132-1.0B 1SAM360200R1005 0.215
0.55 1.6 100 20.0 MO132-1.6B 1SAM360200R1006 0.265
0.75 2.5 100 31.3 MO132-2.5B 1SAM360200R1007 0.265
1.5 4.0 100 50.0 MO132-4.0B 1SAM360200R1008 0.265
2.2 6.3 100 78.8 MO132-6.3B 1SAM360200R1009 0.265
4.0 10 100 125 MO132-10B 1SAM360200R1010 0.265
5.5 12 100 150 MO132-12B 1SAM360200R1012 0.310
7.5 16 100 200 MO132-16B 1SAM360200R1011 0.310
7.5 20 100 250 MO132-20B 1SAM360200R1013 0.310
11 25 50 313 MO132-25B 1SAM360200R1014 0.310
15 32 25 400 MO132-32B 1SAM360200R1015 0.310
Note: For overload protection of motors, an appropriate thermal or electronic overload relay must be used

Main dimensions mm, inches
81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"

0.1"
0.1" 3.85" 1.7 2.95" 1.77"
3.54" 1.7 2.95" 1.38" 1.77" 97.8 75 1.38" 35 45
90 75 35 45"
2CDC242005F0011 2CDC242006F0011

14 0.55" 14 0.55" 14 0.55" 14 0.55" 2CDC131100C0201
45 1.77" 45 1.77"
MO132-B ≤ 10 A MO132-B ≥ 12 A
