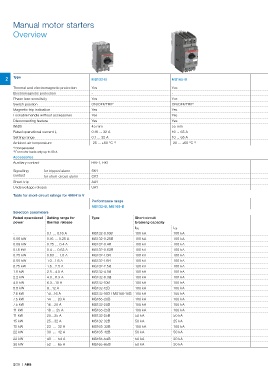

Manual motor starters
Overview

2 Type MS132-B MS165-B MO132-B MO165-B

Thermal and electromagnetic protection Yes Yes - -
Electromagnetic protection - - Yes Yes
Phase loss sensitivity Yes Yes - -
Switch position ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP
Magnetic trip indication Yes Yes - -
Lockable handle without accessories Yes Yes Yes Yes
Disconnecting feature Yes Yes Yes Yes
Width 45 mm 55 mm 45 mm 55 mm
Rated operational current I e 0.16 ... 32 A 16 ... 65 A 0.16 ... 32 A 16 ... 65 A
Setting range 0.1 ... 32 A 10 ... 65 A - -
Ambient air temperature -25 ... +60 °C 1) -20 ... +60 °C 1) -25 ... +60 °C -25 ... +60 °C
1) Compensated
For motor loads only up to 80 A
2)
Accessories
Auxiliary contact HKF1, HK1 HKF1, HK1
Signalling for tripped alarm SK1 SK1
contact for short-circuit alarm CK1 -
Shunt trip AA1 AA1
Undervoltage release UA1 UA1

Table for short-circuit ratings for 400/415 V
Performance range Performance range
MS132-B, MS165-B MO132-B, MO165-B
Selection parameters
Rated operational Setting range for Type Short-circuit Type Short-circuit
power thermal release breaking capacity breaking capacity
I CU I CS I CU I CS
- 0.1 … 0.16 A MS132-0.16B 100 kA 100 kA MO132-0.16B 100 kA 100 kA
0.06 kW 0.16 … 0.25 A MS132-0.25B 100 kA 100 kA MO132-0.25B 100 kA 100 kA
0.09 kW 0.25 … 0.4 A MS132-0.4B 100 kA 100 kA MO132-0.4B 100 kA 100 kA
0.18 kW 0.4 … 0.63 A MS132-0.63B 100 kA 100 kA MO132-0.63B 100 kA 100 kA
0.25 kW 0.63 … 1.0 A MS132-1.0B 100 kA 100 kA MO132-1.0B 100 kA 100 kA
0.55 kW 1.0…1.6 A MS132-1.6B 100 kA 100 kA MO132-1.6B 100 kA 100 kA
0.75 kW 1.6…2.5 A MS132-2.5B 100 kA 100 kA MO132-2.5B 100 kA 100 kA
1.5 kW 2.5…4.0 A MS132-4.0B 100 kA 100 kA MO132-4.0B 100 kA 100 kA
2.2 kW 4.0…6.3 A MS132-6.3B 100 kA 100 kA MO132-6.3B 100 kA 100 kA
4.0 kW 6.3…10 A MS132-10B 100 kA 100 kA MO132-10B 100 kA 100 kA
5.5 kW 8…12 A MS132-12B 100 kA 100 kA MO132-12B 100 kA 100 kA
7.5 kW 10…16 A MS132-16B / MS165-16B 100 kA 100 kA MO132-16B / MO165-16B 100 kA 100 kA
7.5 kW 14 ... 20 A MS165-20B 100 kA 100 kA MO165-20B 100 kA 100 kA
7.5 kW 16…20 A MS132-20B 100 kA 100 kA MO132-20B 100 kA 100 kA
11 kW 18 … 25 A MS165-25B 100 kA 100 kA
11 kW 20…25 A MS132-25B 50 kA 50 kA MO132-25B / MO165-25B 50 kA / 100 kA 50 kA / 100 kA
15 kW 25…32 A MS132-32B 50 kA 25 kA MO132-32B 50 kA 25 kA
15 kW 23 ... 32 A MS165-32B 100 kA 100 kA MO165-32B 100 kA 100 kA
22 kW 30 ... 42 A MS165-42B 50 kA 50 kA MO165-42B 50 kA 50 kA
22 kW 40 ... 54 A MS165-54B 50 kA 30 kA MO165-54B 50 kA 30 kA
30 kW 52 ... 65 A MS165-65B 50 kA 30 kA MO165-65B 50 kA 30 kA
