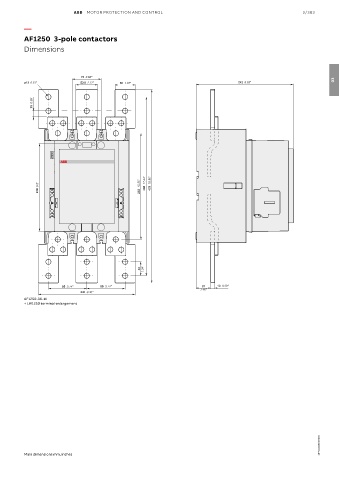

AF1250 3-pole contactors
Dimensions
72 2.83"
ø13 0.51" 53.8 2.12" 50 1.97" 242 9.53" 03
15 0.59"
249 9.8" 263 10.35" 443 17.44" 479 18.86"
34 1.34"
95 3.74" 95 3.74" 37 10 0.39" 1SFC101132F0001
1SFC101131F0001
240 9.45" 1.46"
AF1250-30-11
+ LW1250 terminal enlargement
1SFC101136C0201
Main dimensions mm, inches
