3/386 ABB MOTOR PROTECTION AND CONTROL

—

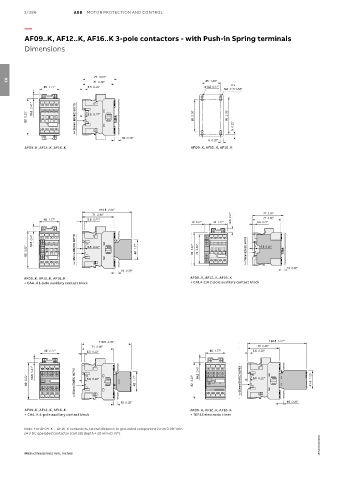

AF09..K, AF12..K, AF16..K 3-pole contactors - with Push-in Spring terminals

Dimensions

77 3.03" 77 3.03"
71 2.80" 35 1.38"
45 1.77" 71 2.80" 2 x
03
45 1.77" 5.5 0.22" ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC
6 0.24"
10.5 0.41" 5.5 0.22"
82 3.22" 80 3.15" 35mm EN/EC 60715 5.5 0.22" 35 mm EN/IEC 60715 60 2.36" 70 2.76" 5 0.20"

10 0.39" 10 0.39"
5 0.20"
AF09..K, AF12..K, AF16..K AF09..K, AF12..K, AF16..K

110.5 4.35"
71 2.80" 77 3.03"
45 1.77" 5.5 0.22" 10.5 0.41" 71 2.80"
12 0.47" 45 1.77" 5.5 0.22"
10.5 0.41"

82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77" 82 3.22" 72 2.83" 35mm EN/EC 60715 5.5 0.22"

10 0.39"
10 0.39"
AF09..K, AF12..K, AF16..K AF09..K, AF12..K, AF16..K
+ CA4..K 1-pole auxiliary contact block + CAL4-11K 2-pole auxiliary contact block

110.5 4.35" 132.5 5.22"
71 2.80" 71 2.80"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"

10.5 0.41" 10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77" 82 3.22" 35mm EN/EC 60715 5.5 0.22" 41.5 1.63"

10 0.39" 10 0.39"
AF09..K, AF12..K, AF16..K AF09..K, AF12..K, AF16..K
+ CA4..K 4-pole auxiliary contact block + TEF4S electronic timer

Note: For AF09..K ... AF16..K contactors, lateral distance to grounded component 2 mm 0.08" min
24 V DC operated contactor (coil 30) depth + 20 mm (0.79").
1SBC100412S0201

Main dimensions mm, inches
