ABB MOTOR PROTECTION AND CONTROL 3/387

—

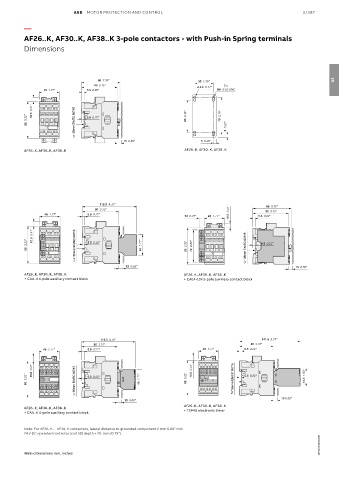

AF26..K, AF30..K, AF38..K 3-pole contactors - with Push-in Spring terminals

Dimensions

77 3.03"
86 3.39" 35 1.38" 03
45 1.77" 80 3.15" 71 2.80" 2 x
45 1.77" 5.5 0.22" 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24"
10.5 0.41" 80 3.15" 35 mm EN/IEC 60715 5.5 0.22"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 60 2.36" 70 2.76" 5 0.20"

10 0.39"
15 0.59" 5 0.20"
AF26..K, AF30..K, AF38..K AF26..K, AF30..K, AF38..K

119.5 4.70" 86 3.39"
80 3.15" 80 3.15"
45 1.77" 5.5 0.22" 10.5 0.41"
12 0.47" 45 1.77" 5.5 0.22"
10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77" 82 3.22" 72 2.83" 35mm EN/EC 60715 5.5 0.22"

15 0.59" 15 0.59"
AF26..K, AF30..K, AF38..K AF26..K, AF30..K, AF38..K
+ CA4..K 1-pole auxiliary contact block + CAL4-11K 2-pole auxiliary contact block

119.5 4.70" 141.5 5.57"
80 3.15" 80 3.15"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"

10.5 0.41" 10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 45 1.77" 82 3.22" 35mm EN/EC 60715 5.5 0.22" 41.5 1.63"

15 0.59"
15 0.59"
AF26..K, AF30..K, AF38..K
AF26..K, AF30..K, AF38..K
+ CA4..K 4-pole auxiliary contact block + TEF4S electronic timer

Note: For AF26..K ... AF38..K contactors, lateral distance to grounded component 2 mm 0.08" min
24 V DC operated contactor (coil 30) depth + 20 mm (0.79").
1SBC100423S0201

Main dimensions mm, inches
