ABB MOTOR PROTECTION AND CONTROL 3/385

—

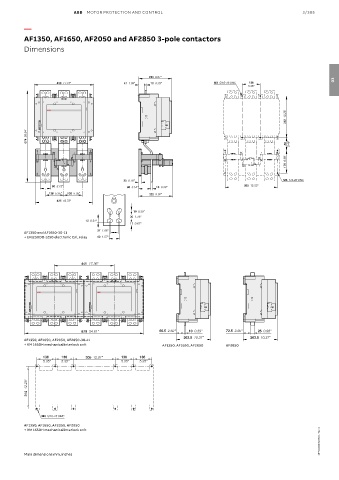

AF1350, AF1650, AF2050 and AF2850 3-pole contactors
Dimensions

244 9.61"
438 17.24" 47 1.85" 10 0.39" M8 5/16-18 UNC 136 03
5.35"

312 12.28"

674 26.54" 88 3.46"

170 6.69"

20 0.79" M6 1/4-20 UNC
80 3.15" 90 3.54" 10 0.39" 395 15.55"
136 5.35" 136 5.35" 252 9.92"
425 16.73"
10 0.39"
30 1.18"
13 0.51"
17 0.67"
27 1.06"
AF1350 and AF1650-30-11
+ EF1250DU-1250 electronic O/L relay 40 1.57"

441 17.36"

879 34.61" 66.5 2.62" 10 0.39" 72.5 2.85" 25 0.98"
263.5 10.37" 263.5 10.37"
AF1350, AF1650, AF2050, AF2850-30-11
+ VM 1650H mechanical interlock unit AF1350, AF1650, AF2050 AF2850
136 136 305 12.01" 136 136
5.35" 5.35" 5.35" 5.35"

312 12.28"

M8 5/16-18 UMC
AF1350, AF1650, AF2050, AF2850
1SFC101123C0201 - Rev. C
+ VM 1650H mechanical interlock unit

Main dimensions mm, inches
