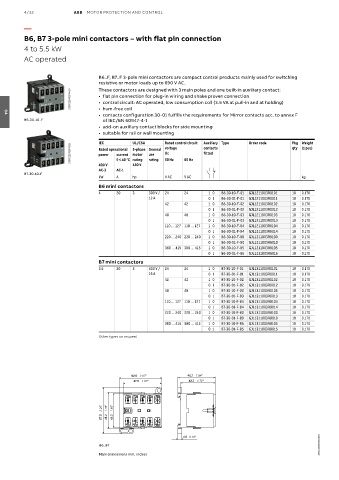

Page 548 - Motor protection and control Manual motor starters, contactors and overload relays

4/32 ABB MOTOR PROTECTION AND CONTROL

—
B6, B7 3-pole mini contactors – with flat pin connection

4 to 5.5 kW
AC operated

B6..F, B7..F 3-pole mini contactors are compact control products mainly used for switching
resistive or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211002F0010 • flat pin connection for plug-in wiring and shake proven connection
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
04
B6-30-10-F of IEC/EN 60947-4-1
• add-on auxiliary contact blocks for side mounting
• suitable for rail or wall mounting
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
2CDC211031F0011 Rated operational 3-phase General Uc 60 Hz fitted
contacts
voltage
qty
(1 pce)
use
motor
power
current
rating
rating
50 Hz
θ ≤ 40 °C
400 V
AC-3 AC-1 480 V
B7-30-10-F
kW A hp V AC V AC kg
B6 mini contactors
4 20 3 300 V / 24 24 1 0 B6-30-10-F-01 GJL1211003R0101 10 0.170
12 A 0 1 B6-30-01-F-01 GJL1211003R0011 10 0.170
42 42 1 0 B6-30-10-F-02 GJL1211003R0102 10 0.170
0 1 B6-30-01-F-02 GJL1211003R0012 10 0.170
48 48 1 0 B6-30-10-F-03 GJL1211003R0103 10 0.170
0 1 B6-30-01-F-03 GJL1211003R0013 10 0.170
110 … 127 110 … 127 1 0 B6-30-10-F-84 GJL1211003R8104 10 0.170
0 1 B6-30-01-F-84 GJL1211003R8014 10 0.170
220 … 240 220 … 240 1 0 B6-30-10-F-80 GJL1211003R8100 10 0.170
0 1 B6-30-01-F-80 GJL1211003R8010 10 0.170
380 … 415 380 … 415 1 0 B6-30-10-F-85 GJL1211003R8105 10 0.170
0 1 B6-30-01-F-85 GJL1211003R8015 10 0.170
B7 mini contactors
5.5 20 5 600 V / 24 24 1 0 B7-30-10-F-01 GJL1311003R0101 10 0.170
16 A 0 1 B7-30-01-F-01 GJL1311003R0011 10 0.170
42 42 1 0 B7-30-10-F-02 GJL1311003R0102 10 0.170
0 1 B7-30-01-F-02 GJL1311003R0012 10 0.170
48 48 1 0 B7-30-10-F-03 GJL1311003R0103 10 0.170
0 1 B7-30-01-F-03 GJL1311003R0013 10 0.170
110 … 127 110 … 127 1 0 B7-30-10-F-84 GJL1311003R8104 10 0.170
0 1 B7-30-01-F-84 GJL1311003R8014 10 0.170
220 … 240 220 … 240 1 0 B7-30-10-F-80 GJL1311003R8100 10 0.170
0 1 B7-30-01-F-80 GJL1311003R8010 10 0.170
380 … 415 380 … 415 1 0 B7-30-10-F-85 GJL1311003R8105 10 0.170
0 1 B7-30-01-F-85 GJL1311003R8015 10 0.170
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
B6, B7 2CDC102033C0201
Main dimensions mm, inches
