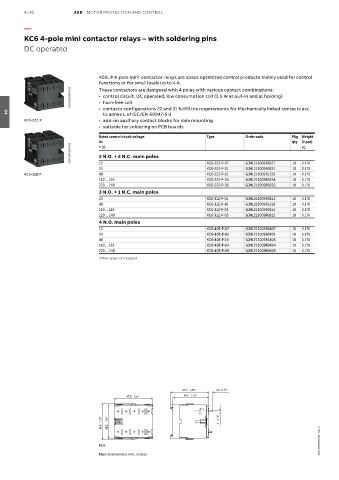

Page 546 - Motor protection and control Manual motor starters, contactors and overload relays

4/30 ABB MOTOR PROTECTION AND CONTROL

—
KC6 4-pole mini contactor relays – with soldering pins

DC operated

KC6..P 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
2CDC211025F0011 • control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
These contactors are designed with 4 poles with various contact combinations:
• hum-free coil
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc.
to annex L of IEC/EN 60947-5-1
04
KC6-22Z-P • add-on auxiliary contact blocks for side mounting
• suitable for soldering on PCB boards
Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
2CDC211023F0011 2 N.O. + 2 N.C. main poles
kg
V DC
12
10
GJH1213009R0221
KC6-22Z-P-01
24 KC6-22Z-P-07 GJH1213009R0227 10 0.170
0.170
KC6-31Z-P 48 KC6-22Z-P-16 GJH1213009R1226 10 0.170
110 ... 125 KC6-22Z-P-04 GJH1213009R0224 10 0.170
220 ... 240 KC6-22Z-P-05 GJH1213009R0225 10 0.170
3 N.O. + 1 N.C. main poles
24 KC6-31Z-P-01 GJH1213009R0311 10 0.170
48 KC6-31Z-P-16 GJH1213009R1316 10 0.170
110 ... 125 KC6-31Z-P-04 GJH1213009R0314 10 0.170
220 ... 240 KC6-31Z-P-05 GJH1213009R0315 10 0.170
4 N.O. main poles
12 KC6-40E-P-07 GJH1213009R0407 10 0.170
24 KC6-40E-P-01 GJH1213009R0401 10 0.170
48 KC6-40E-P-16 GJH1213009R1406 10 0.170
110 ... 125 KC6-40E-P-04 GJH1213009R0404 10 0.170
220 ... 240 KC6-40E-P-05 GJH1213009R0405 10 0.170
Other types on request.

47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04"
2CDC102031C0201 - Rev. A

KC6
Main dimensions mm, inches
