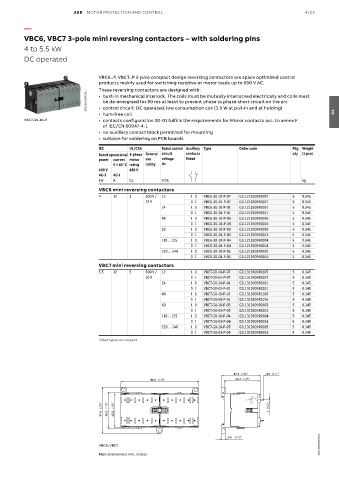

Page 541 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/25

—
VBC6, VBC7 3-pole mini reversing contactors – with soldering pins

4 to 5.5 kW
DC operated

VBC6..P, VBC7..P 3-pole compact design reversing contactors are space optimized control
products mainly used for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
2CDC211009F0011 • control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must
be de-energised for 50 ms at least to prevent phase to phase short circuit on the arc

• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
VBC7-30-10-P • hum-free coil 04
of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for soldering on PCB boards
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit contacts qty (1 pce)
power current motor use voltage fitted
θ ≤ 40 °C rating rating Uc
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC6 mini reversing contactors
4 12 3 300 V / 12 1 0 VBC6-30-10-P-07 GJL1213909R0107 5 0.345
12 A 0 1 VBC6-30-01-P-07 GJL1213909R0017 5 0.345
24 1 0 VBC6-30-10-P-01 GJL1213909R0101 5 0.345
0 1 VBC6-30-01-P-01 GJL1213909R0011 5 0.345
48 1 0 VBC6-30-10-P-06 GJL1213909R0106 5 0.345
0 1 VBC6-30-06-P-06 GJL1213909R0016 5 0.345
60 1 0 VBC6-30-10-P-03 GJL1213909R0103 5 0.345
0 1 VBC6-30-01-P-03 GJL1213909R0013 5 0.345
110 ... 125 1 0 VBC6-30-10-P-04 GJL1213909R0104 5 0.345
0 1 VBC6-30-01-P-04 GJL1213909R0014 5 0.345
220 … 240 1 0 VBC6-30-10-P-05 GJL1213909R0105 5 0.345
0 1 VBC6-30-01-P-05 GJL1213909R0015 5 0.345
VBC7 mini reversing contactors
5.5 12 5 600 V / 12 1 0 VBC7-30-10-P-07 GJL1313909R0107 5 0.345
16 A 0 1 VBC7-30-01-P-07 GJL1313909R0017 5 0.345
24 1 0 VBC7-30-10-P-01 GJL1313909R0101 5 0.345
0 1 VBC7-30-01-P-01 GJL1313909R0011 5 0.345
48 1 0 VBC7-30-10-P-16 GJL1313909R1106 5 0.345
0 1 VBC7-30-01-P-16 GJL1313909R1016 5 0.345
60 1 0 VBC7-30-10-P-03 GJL1313909R0103 5 0.345
0 1 VBC7-30-01-P-03 GJL1313909R0013 5 0.345
110 ... 125 1 0 VBC7-30-10-P-04 GJL1313909R0104 5 0.345
0 1 VBC7-30-01-P-04 GJL1313909R0014 5 0.345
220 … 240 1 0 VBC7-30-10-P-05 GJL1313909R0105 5 0.345
0 1 VBC7-30-01-P-05 GJL1313909R0015 5 0.345
Other types on request

47.7 1.88" 4.3 0.17"
96.2 3.79" 44.7 1.76"

57.5 2.26" 45.2 1.78" 42.2 1.66" 1 0.04"

4.5 0.18"
VBC6, VBC7 2CDC102026C0201
Main dimensions mm, inches
